Maximum Resolution

For PWM driver ICs, the maximum load capacity per card is:

• 512×512@60Hz (For 8bit and 10bit video sources)
• 512×384@60Hz (For 12bit video sources)

Electrical Parameters

Input voltage

DC 3.8 V to 5.5 V

Rated current

0.8 A

Rated power consumption

4.0 W

Anti-static Protection

2 kV

Operating Environment

Temperature

–20°C to +70°C

Humidity

10% RH to 90% RH, non-condensing

Storage Environment

Temperature

–40°C to +85°C

Humidity

0% RH to 95% RH, non-condensing

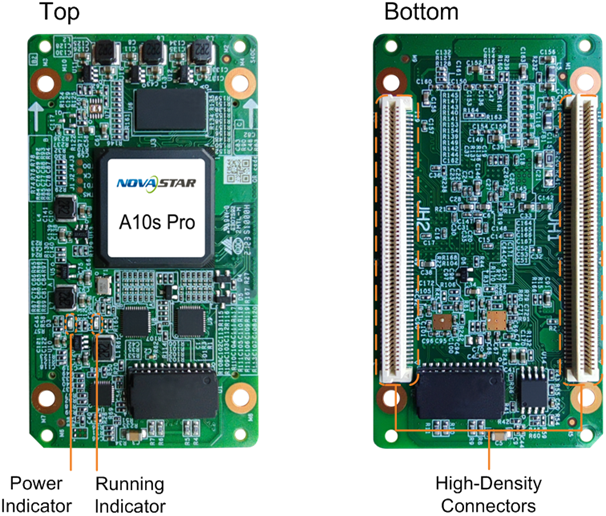

Physical Specifications

Dimensions

80.0 mm × 45.0 mm × 8.6 mm

Net weight

22.8 g

Note: It is the weight of a single receiving card only.

Packing Information

Packaging

Each receiving card is packaged in a blister pack. Each packing box contains 80 receiving cards.

Packing box

392.0 mm × 200.0 mm × 123.0 mm
