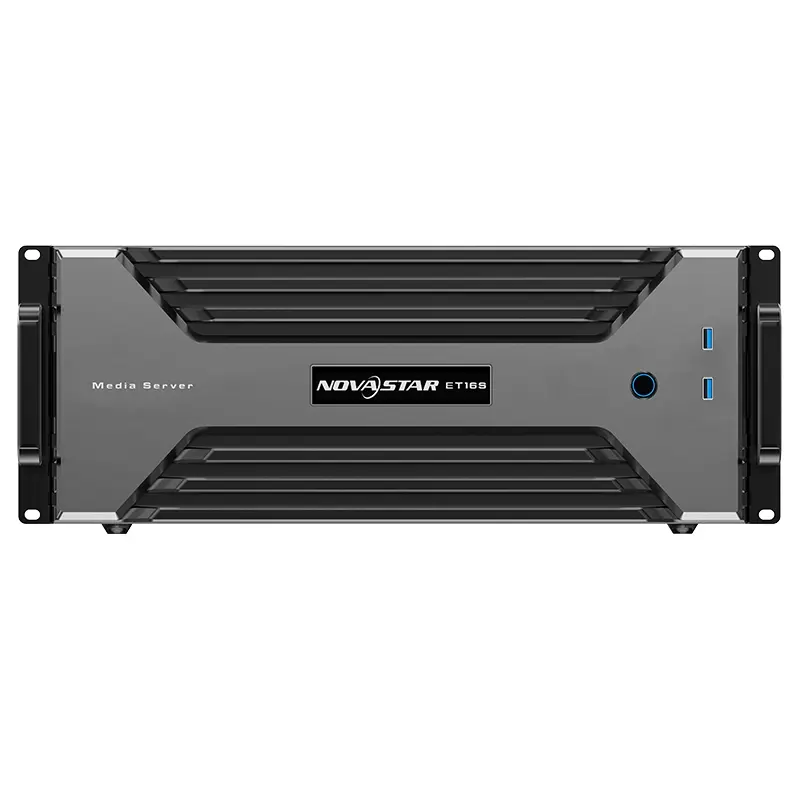

ET16S-G(Dual CPU)-Main Case

NovaStar ET16S-G is a state-of-the-art professional media server designed to deliver exceptional visual experiences with ultra-high resolution support up to 16K×8K. Featuring multiple high-performance graphics cards, an Intel Xeon processor, and ECC high-speed memory, the ET16S-G provides frame-synchronized output and advanced video decoding for immersive displays. With Kompass FX3 multimedia playback software, the ET16S-G supports multi-channel audio and video playback, visual media management, and creative display configurations, making it ideal for large-scale installations such as outdoor advertising, naked-eye 3D displays, immersive experiences, and data centers.

Key Features

✅ Ultra-High-Definition Output:

• Supports up to 16K×8K output resolution with pixel-to-pixel accuracy
• Up to 4x 5120×2880@60Hz outputs per graphics card, with a maximum total width/height of 16,384 pixels
• Output mosaic configurations include 1×2, 1×3, 1×4, 2×2, 2×1, 3×1, or 4×1

✅ Advanced Video Performance:

• Playback of up to 12 video layers and 1 audio layer simultaneously
• Smooth playback of 4 layers of 8K×4K@60fps SDR videos (hardware decoding)
• Supports video formats including H.264, H.265 (HEVC), AV1, ProRes, VP9, and more

✅ Flexible Display Configuration:

• Free partitioning, reorganizing, and rotating of multiple outputs for irregular screen layouts
• Each output can be split into up to 64 partitions for ultra-wide screen mapping
• Sequence frame playback in BMP, TIFF, TGA, JPG, PNG formats

✅ Multi-Server Synchronization:

• Frame synchronization across multiple servers for seamless video playback
• External LTC and MTC timecode inputs for precise and synchronized playback control
• Sync card with 2x RJ45 ports and 1x BNC port for external sync signals

✅ Versatile Media Management:

• Built-in media library supporting videos, images, PowerPoint slides, and audio files
• Media collection with NDI sources, capture devices, streaming media, and text sources
• Visualized program arrangement with live and pre-edit modes for real-time editing and playback

✅ Professional Audio Integration:

• 3.5mm audio connectors: MIC IN, Line IN, and 3x Line OUT for 6-channel audio
• S/PDIF optical port for digital audio output

✅ Hardware and Performance:

• Intel Xeon Gold Processor with ECC DDR4 high-speed memory (default 64 GB or 128 GB)
• High-speed SSD storage: Default 1 TB + 960 GB (expandable)
• Supports up to 4 graphics cards for expanded output capability
• 1300W power supply ensures stable operation for intensive tasks

✅ Control and Connectivity:

• Kompass FX3 software with a licensing dongle included
• 2x RJ45 Ethernet ports for networking and remote control
• 3x Mini DP connectors for UI display, plus 1x VGA for system installation
