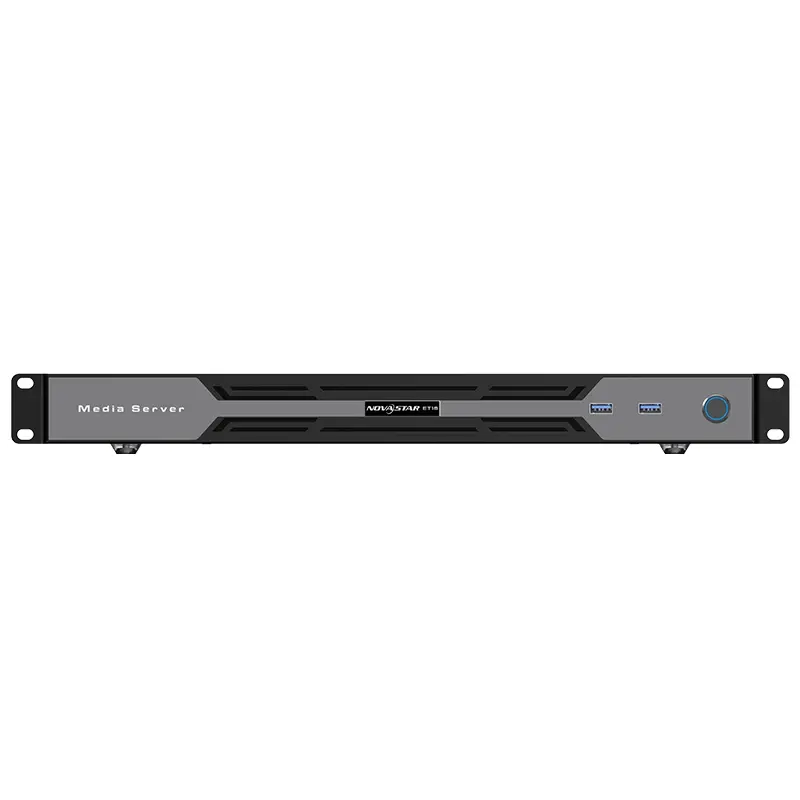

NovaStar ET1S-G Media Server

The ET1S-G is a media server from NovaStar for small, permanently installed LED or LCD displays. It offers high-resolution, pixel-perfect display, flexible mosaic layouts, and professional media control for various applications. The integrated Kompass FX1 software significantly simplifies management and control.

Hardware Features

• 4K×2K@60Hz Output Capacity
• Ultra-high-resolution video decoding, pixel-perfect display
• Hardware decoding
• Up to 4 media layers + 1 audio simultaneously
• Layer masking & cropping
• Support for external sources: NDI, websites, streaming media, text

Outputs:

• 1× DP 1.2
• 4× HDMI 1.3 (copies DP 1.2 output)
• 1×HDMI 2.0 (copies DP 1.2 output)

General specifications:

• Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz
• Power consumption: 80 W
• Dimensions: 400 × 482.63 × 43.6 mm (L × W × H)
• Weight: 5.2 kg
