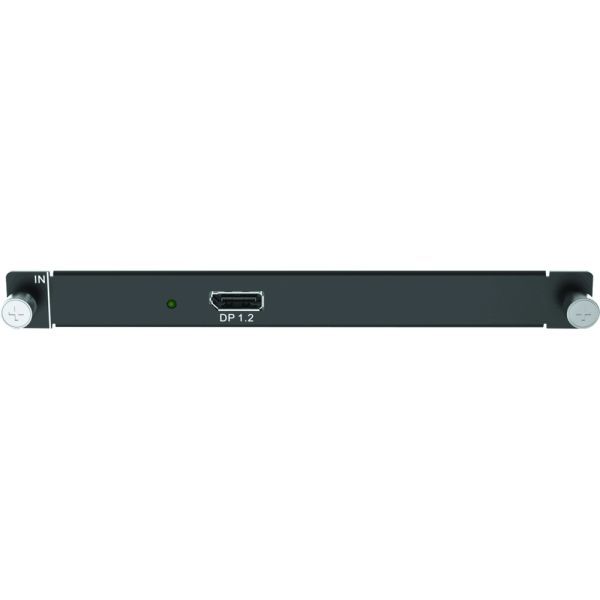

NovaStar H Series H_1*DP1.2 Input Card Specifications

Overview:

The NovaStar H Series H_1*DP1.2 Input Card offers a high-quality input solution for the H-Series controllers, supporting DisplayPort 1.2 with compatibility for DP 1.1. It enables high-definition video input with resolutions up to 4096×2160@60Hz or 8192×1080@60Hz, making it ideal for high-resolution video processing setups. The card supports HDCP 2.2 compliance and offers a robust solution for professional video environments.

Key Features:

• Input Type: 1x DP 1.2 (Backwards compatible with DP 1.1)
• Maximum Resolution:
  • 4096×2160@60Hz or 8192×1080@60Hz
• Custom Resolutions:
  • Max. Width: 8192 pixels (8192×1146@60Hz)
  • Max. Height: 4095 pixels (2188×4095@60Hz)
• HDCP 2.2 Compliant: Yes
• Audio Support: Yes, accompanied audio support
• 144Hz Input Support: Yes
• Status LEDs:
  • On: The input source is accessed normally.
  • Off: No input source is accessed or the input source is abnormal.

Mechanical Specifications:

• Weight: 550 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power Consumption: 9.4 W
