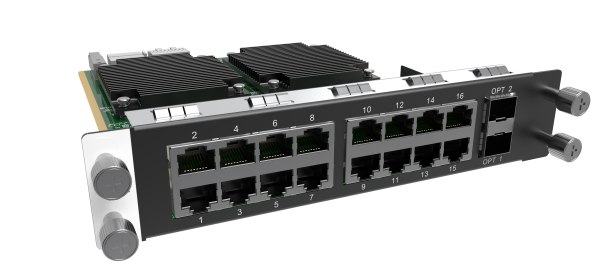

H_16*RJ45+2*Fiber Sending Card Specifications

Overview:

The H_16*RJ45+2*Fiber Sending Card provides enhanced performance with 16 Ethernet outputs and 2 optical fiber outputs. It supports high-speed output with a backup mechanism and is designed for robust and flexible display configurations.

Key Features:

• Number of Ethernet Outputs: 16x RJ45 Gigabit Ethernet outputs
• Bit Depth:
  • 8-bit: A single Ethernet port loads up to 650,000 pixels
  • 10-bit: A single Ethernet port loads up to 320,000 pixels
• Backup: Backup between Ethernet ports
• Supports Output: 144Hz output
• Optical Fiber Outputs:
  • 2x OPT outputs
  • Support both SMF (Single-Mode Fiber) and MMF (Multi-Mode Fiber) transmission
  • OPT 1 copies and outputs data from Ethernet ports 1–8
  • OPT 2 copies and outputs data from Ethernet ports 9–16

Physical Specifications:

• Weight: 600 g
• Dimensions: 193 mm × 247.12 mm × 41.25 mm
• Power Consumption: 34.2 W
