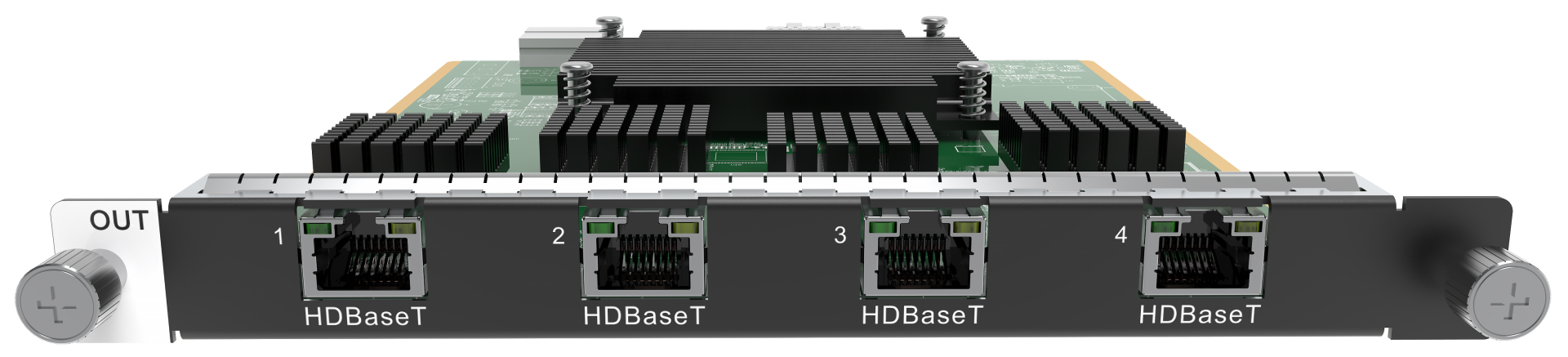

H_4*HDBaseT Output Card

The NovaStar H_4xHDBaseT Output Card is designed for use with NovaStar's H-Series video wall splicers, providing high-definition video transmission over long distances.

NOVASTAR

Output Interfaces:

• HDBaseT Ports: 4 RJ45 connectors

Output Modes:

• Single-Link Output:
  • All four connectors are active.
  • Maximum Resolution per Connector: 2048×1152 at 60 Hz
  • Custom Resolutions Supported:
    • Maximum Width: 2560 pixels
    • Maximum Height: 2560 pixels
• Dual-Link Output:
  • Connectors 2 and 4 are active; connectors 1 and 3 mirror the outputs of 2 and 4, respectively.
  • Maximum Resolution per Connector: 4096×2160 at 30 Hz or 3840×1080 at 60 Hz
  • Custom Resolutions Supported:
    • Maximum Width: 4096 pixels
    • Maximum Height: 4096 pixels

Color Sampling Support:

• 8-bit:
  • RGB 4:4:4
  • YCbCr 4:4:4
  • YCbCr 4:2:2
• 10-bit:
  • RGB 4:4:4
  • YCbCr 4:4:4

Physical Specifications:

• Weight: Approximately 500 grams
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power Consumption: 24 W
