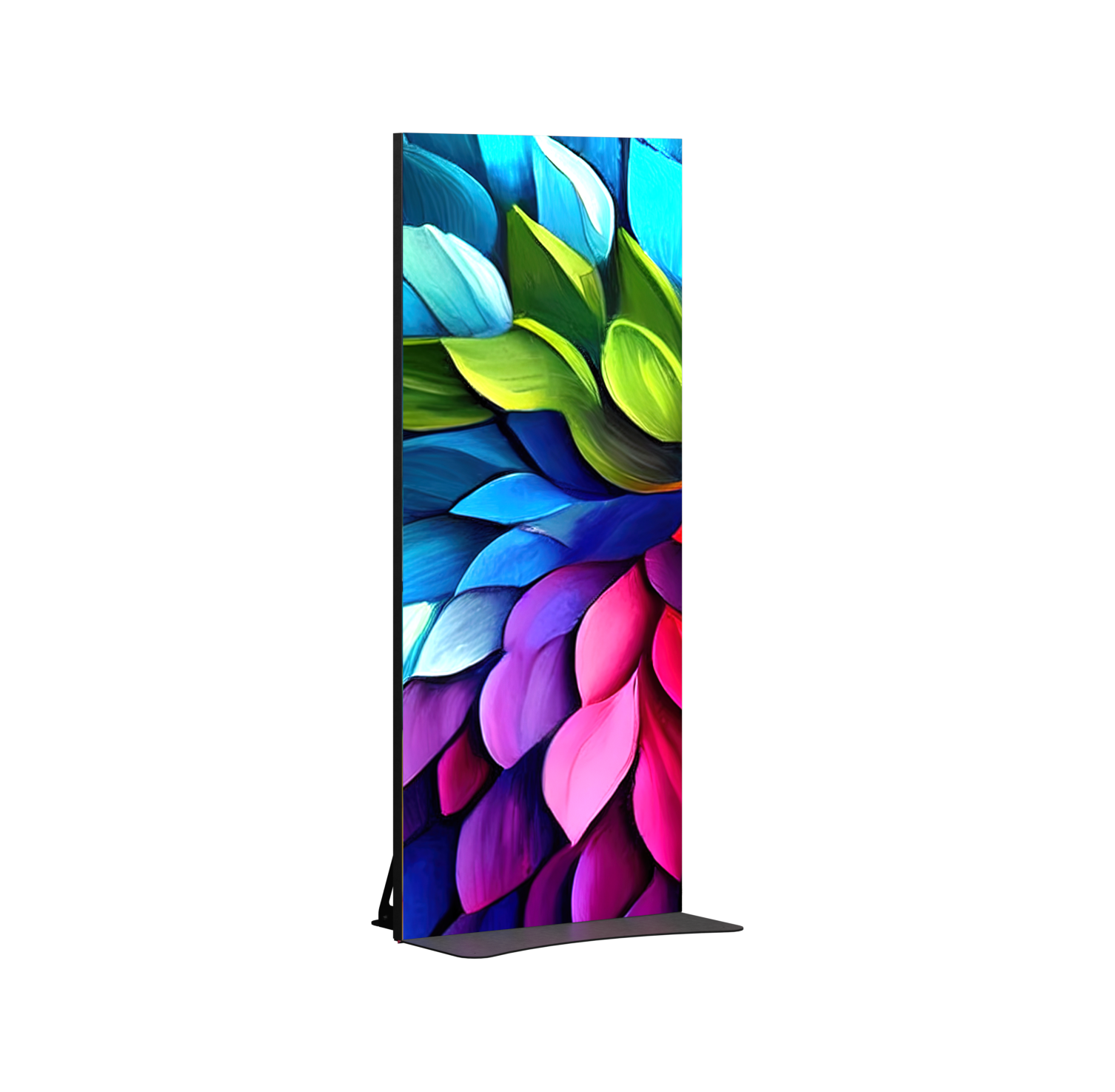

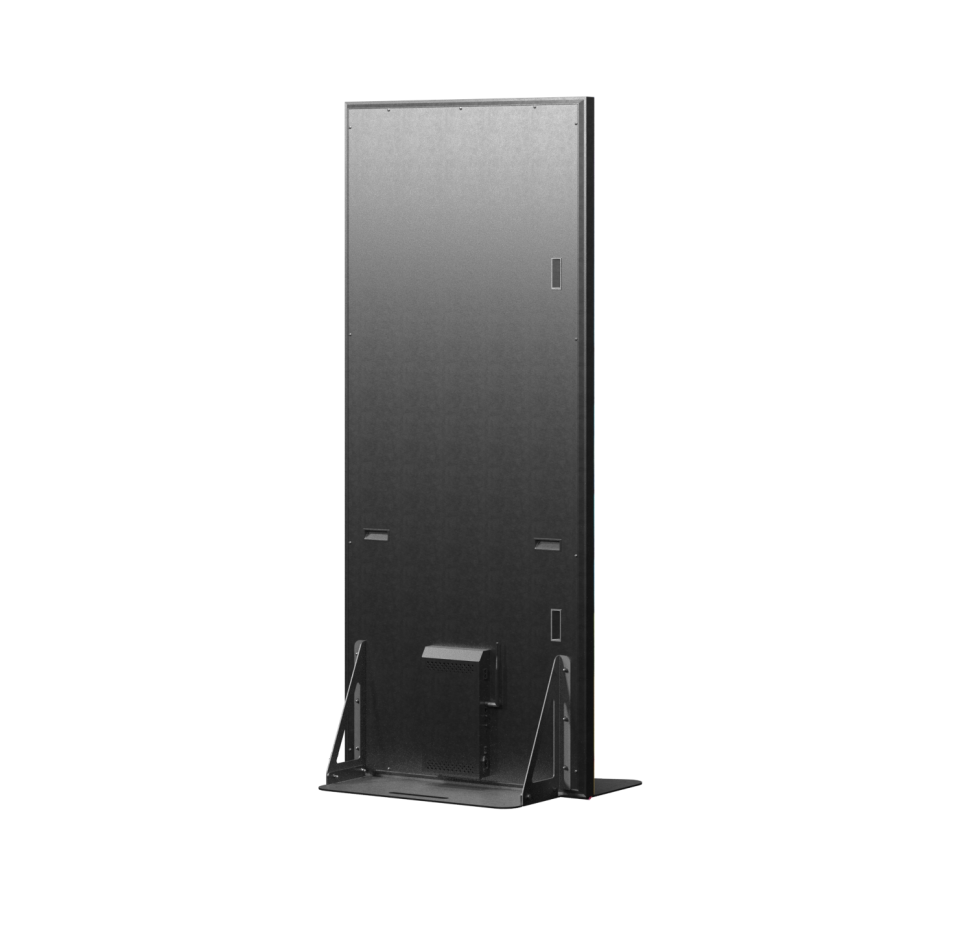

Description of LEDUP 1.5mm Indoor

General Features:

• Operating Environment: Indoor
• Pixel Pitch: 1.5mm
• Service Type: Front access
• Calibrated Brightness: 900 nits
• Lamp Type: SMD (Surface-Mounted Diode)
• Lifespan (at 50% brightness): >100,000 hours
• White Color Calibration (adjustable): 3,500K ~ 8,500K
• Gray Scale: >16 bits
• Brightness Control: 256 levels

Module Specifications:

• Refresh Rate: 3,840Hz
• LED Drive Method: Dynamic
• Module Material: Plastic
• PCB Type: Multilayer
• PCB Surface Coating: Humiseal

Panel Specifications:

• Product Material: Aluminum
• Screen Dimensions (mm):

  • 640 x 1,920
• Product Depth: 53mm
• Diagonal Size:
  • 85”
• Aspect Ratio:

  • 6.75:16
• IP Rating: IP22/IP44
• Product Weight (approx. single side):
  • 75kg
• Screen Resolution:
  • 416 x 1248 pixels
• Viewing Angle (Horizontal x Vertical): >160° x 140°
• Minimum Viewing Distance: >2.6m
• Operating Temperature Range: -5°C ~ +45°C
• Storage Temperature Range: -20°C ~ +60°C
• Operating Humidity: 10% ~ 90% (non-condensing)

Electrical Specifications:

• Power Input Voltage: 110V ~ 240V AC
• Power Input Frequency: 50Hz ~ 60Hz
• Average Power Consumption: <105W ~ 200W
• Max Power Consumption: <360W ~ 650W
• Active PFC (Power Factor Correction): Yes
• Load Tolerance: 25% minimum
• Cooling: Passive cooling
• Product Color: Grey (RAL 7016)

Additional Features:

• Internal Player: Yes
• Combined Screen Function: Yes
• Installation Type: Stand, hanging, or wall mounting
• Brightness Adjustment: Automatic & manual
• Dead Pixel Monitoring: N/A
• Module Monitoring: N/A
• Temperature Monitoring: Yes
• Signal Path Backup: Yes
• Signal Transmission: CAT or Fiber Optic
• Standby Scheduling: Yes
• Power On/Off Scheduling: Optional
• Power Saving Mode: Yes

Certifications:

• CE-EMC
• CE-LVD
• RoHS
• FCC
