Novastar DH7508-S

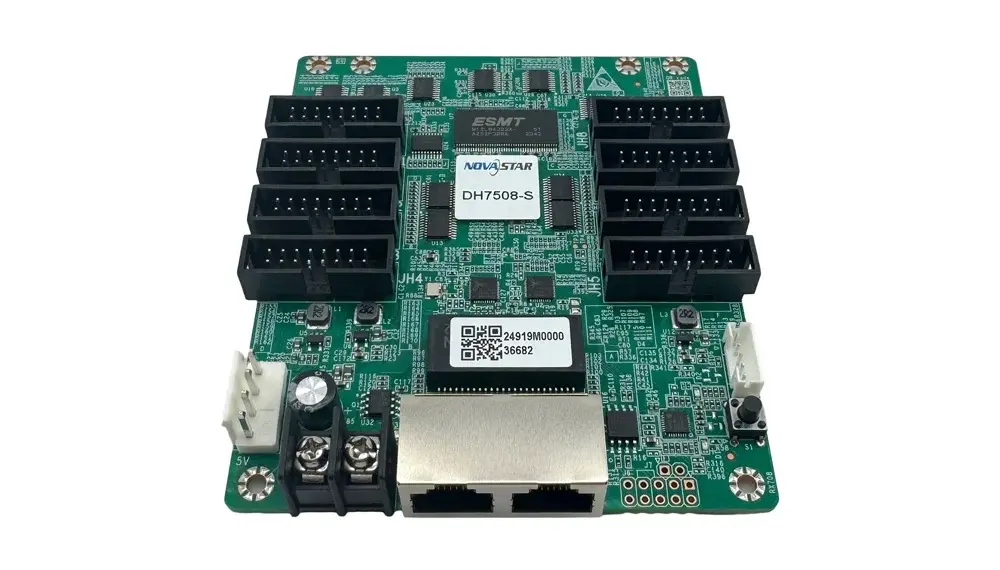

Novastar DH7508-S Receiving Card

Introduction

The DH7508-S is a cost-effective receiving card developed by Xi'an NovaStar Tech Co., Ltd.

(hereinafter referred to as NovaStar). Supporting various functions such as Brightness

Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the DH7508-S can significantly improve the display effect and user experience.

The DH7508-S uses 8 standard HUB75E connectors for high stability communication and supports up to 16 groups of parallel RGB data. Thanks to its EMC compliant hardware design, the DH7508-S has improved electromagnetic compatibility and is suitable for various on-site setups.

l  For PWM driver ICs, the maximum load capacity per card is 512×512@60Hz

l  For common driver ICs, the maximum load capacity per card is 512×384@60Hz

Certifications

RoHS, EMC Class A

If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact to confirm or address the problem.
