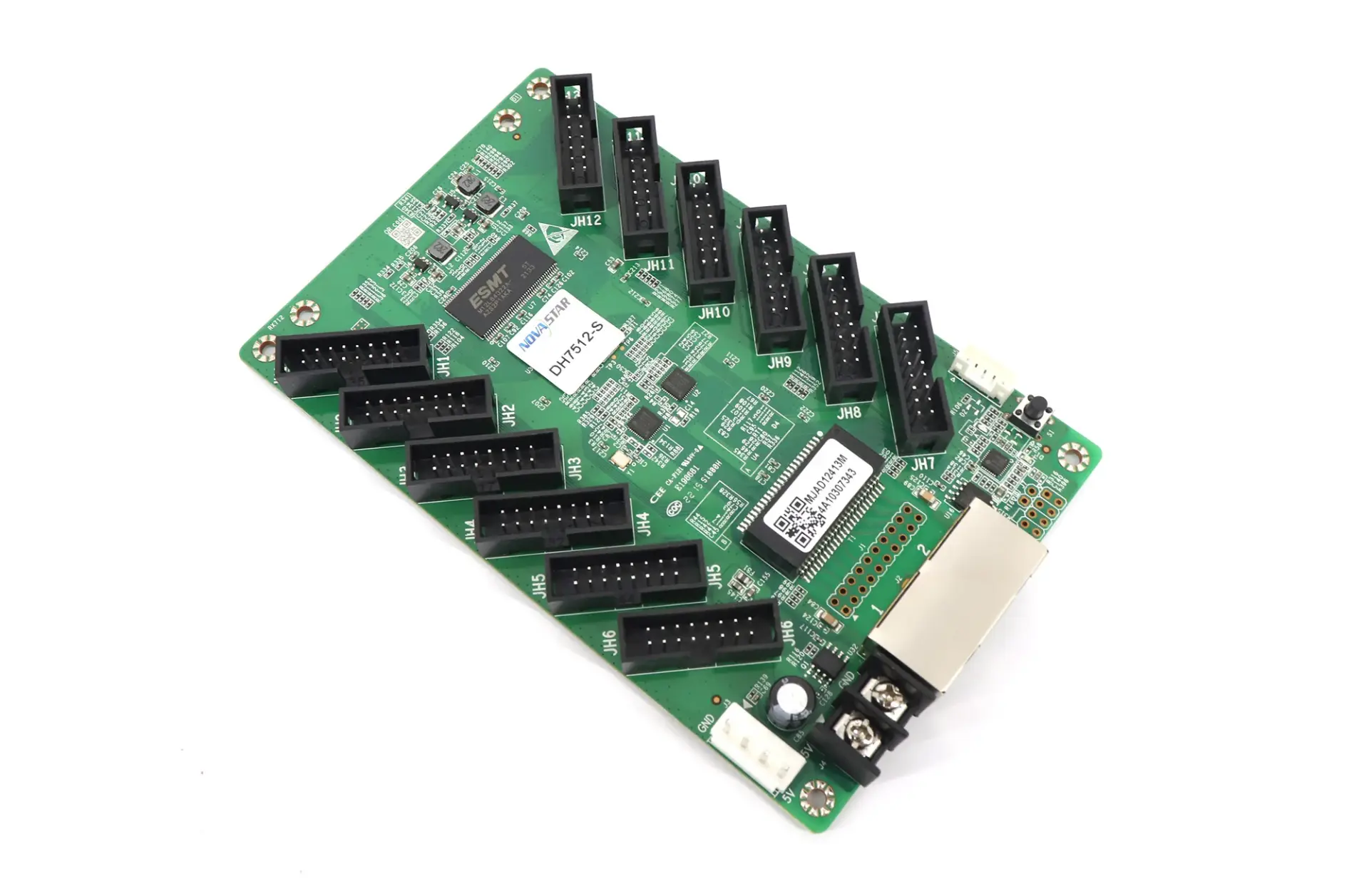

Novastar DH7512-S

Novastar DH7512-S Receiving Card
Introduction

The DH7512-S is a general receiving card developed by NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). Supporting various functions such as Brightness Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the DH7512-S can significantly improve the display effect and user experience.

The DH7512-S uses 12 standard HUB75E connectors for communication. It supports up to 24 groups of parallel RGB data. On-site setup, operation, and maintenance were all taken into account when designing the hardware and software of the DH7512-S, allowing for an easier setup, more stable operation, and more efficient maintenance.

l  For PWM driver ICs, the maximum load capacity per card is 512×512@60Hz

l  For common driver ICs, the maximum load capacity per card is 512×384@60Hz

Certifications

RoHS, EMC Class A.

If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact to confirm or address the problem.
