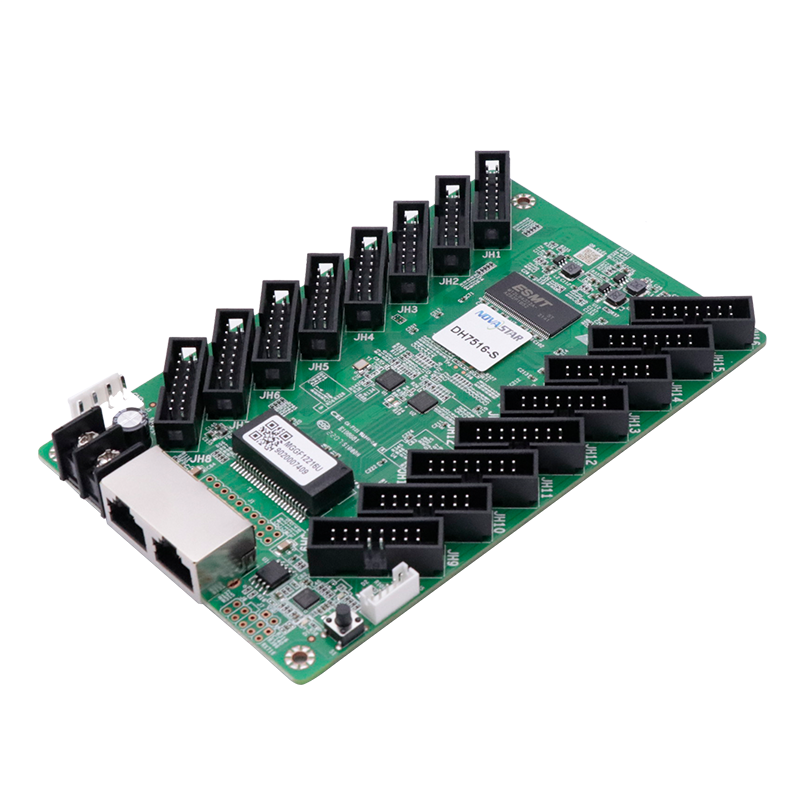

Novastar DH7516-S

Novastar DH7516-S Receiving Card

Introduction

The DH7516-S is a general receiving card developed by Xi'an NovaStar Tech Co., Ltd.

(hereinafter referred to as NovaStar). Supporting various functions such as Brightness

Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the DH7516-S can significantly improve the display effect and user experience.

The DH7516-S uses 16 standard HUB75E connectors for communication, resulting in high stability. It supports up to 32 groups of parallel RGB data and is suitable for various on-site setups.

l  For PWM driver ICs, the maximum load capacity per card is 512×512@60Hz

l  For common driver ICs, the maximum load capacity per card is 512×384@60Hz

Certifications

RoHS, EMC Class A.

If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact to confirm or address the problem.
