NovaStar H Series 1x HDMI 2.0 / 1x DP 1.2 Input Card Specifications

Overview:

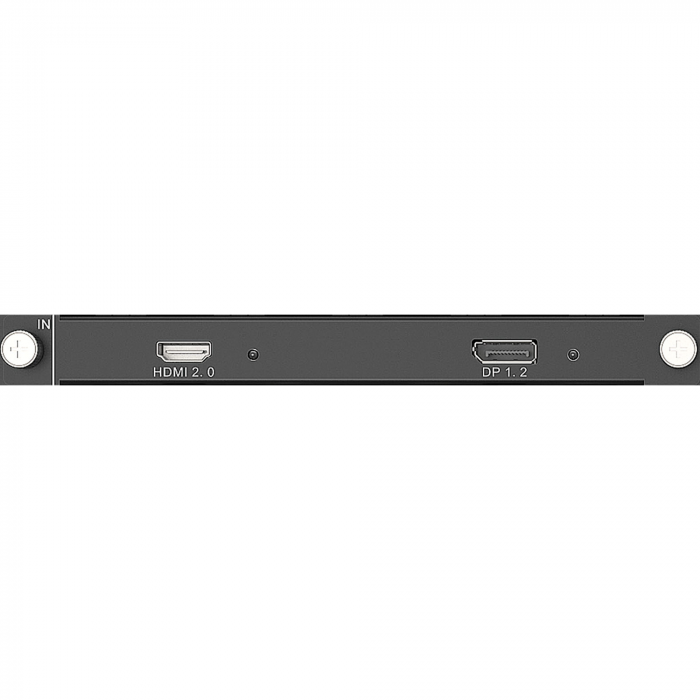

The NovaStar H Series 1x HDMI 2.0 / 1x DP 1.2 Input Card is designed to provide flexible and high-quality video input options for H-Series controllers. It supports both HDMI 2.0 and DisplayPort 1.2 inputs, making it suitable for a variety of professional video applications. The card is compatible with high resolutions up to 4096×2160 and 8192×1080, offering excellent performance for video processing in large-scale display setups.

Key Features:

• Input Types:
  • 1x HDMI 2.0 (Backward compatible with HDMI 1.4 & HDMI 1.3)
  • 1x DP 1.2 (Backward compatible with DP 1.1)
• Maximum Resolution:
  • 4096×2160 or 8192×1080 for both HDMI 2.0 and DP 1.2 inputs
• Custom Resolutions:
  • HDMI 2.0: Max. Width: 4092 pixels (4092×2261@60Hz), Max. Height: 4095 pixels (2188×4095@60Hz)
  • DP 1.2: Max. Width: 8192 pixels (8192×1146@60Hz), Max. Height: 4095 pixels (2188×4095@60Hz)
• HDCP 2.2 Compliant: Yes
• Video Input Usage: Only one video input can be used at a time. Changing the video input does not affect added layers or presets.

Mechanical Specifications:

• Weight: 0.8 kg (1.764 lb)
• IP Rating: IP20 (Indoor use only)
• Colour: Black
