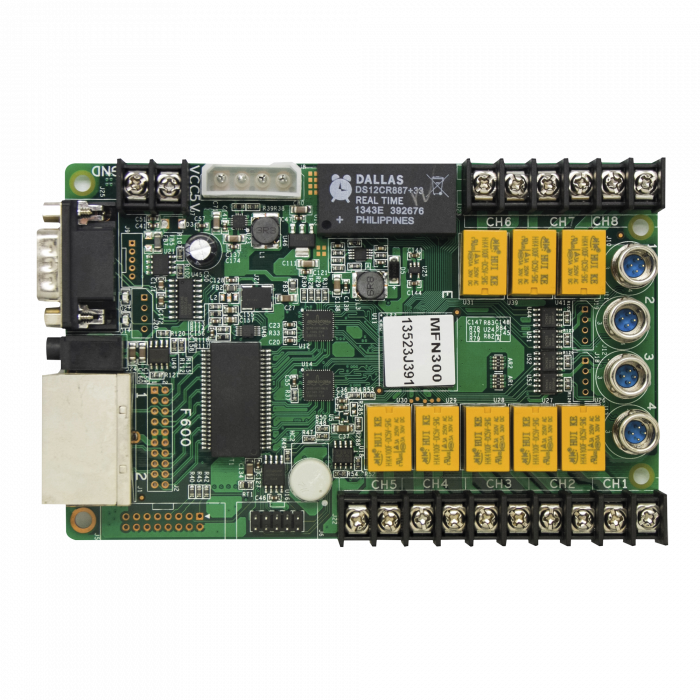

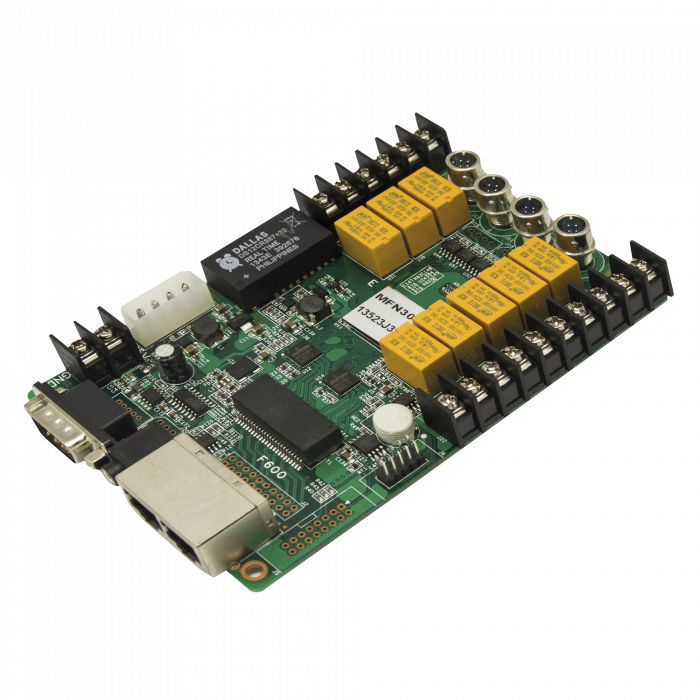

Description of NovaStar MFN300

Inputs:

• RS-232: 1
• Light Sensor Port: 4
• Temperature Sensor Port: 4

Outputs:

• Main Output Connector: TRS balanced 3.5 mm
• Relay Contacts: 8
• Relay Contact Type: NC

Control and Programming:

• Control System: Novastar
• Port Mapping: Software Based

Electrical Specifications and Connections:

• Power Supply: 5 V DC
• Power Connector In: Molex
• Data Connector In: RJ45
• Data Connector Out: RJ45

Mechanical Specifications:

• Height (Without Handles): 20 mm (0.787″)
• Width (Without Handles): 92 mm (3.622″)
• Depth (Without Handles): 144 mm (5.669″)
• Weight: 0.165 kg (0.364 lb)
• IP Rating: IP20 (indoor use only)

Thermal Specifications:

• Maximum Ambient Temperature: 75 °C (167 °F)
• Minimum Ambient Temperature: -20 °C (-4 °F)
• Operating Humidity: 0-95 %rH
