NOVASTAR MRV 266

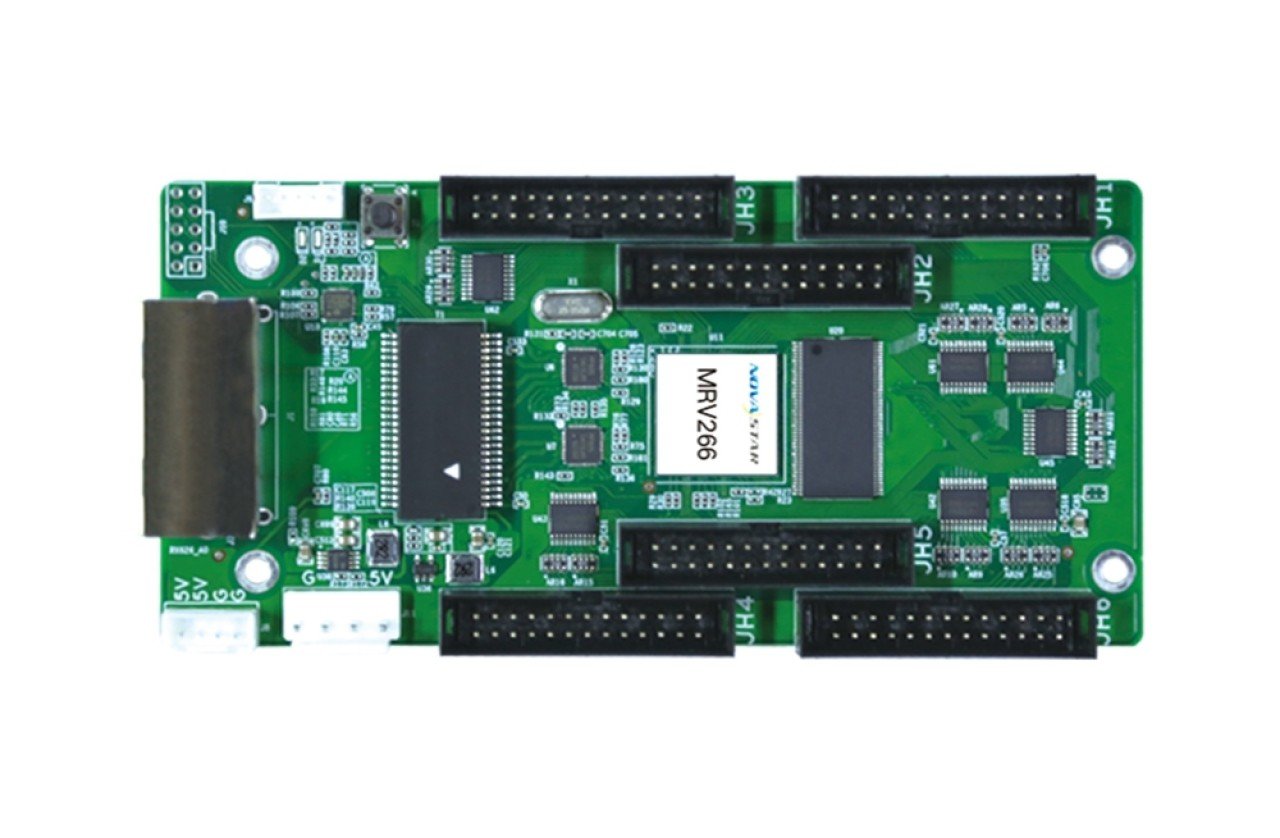

Novastar MRV266 Small-Pitch LED Screen Receiving Card

Features:

• Lighting Chromaticity Correction: Supports chromaticity correction for more accurate color representation on the screen.
• Fast Bright and Dark Line Adjustment: Enables fast adjustment of dark or bright lines caused by module or cabinet splicing to improve the visual experience.
• 3D Function: Supports 3D output when working with a compatible sending card that supports 3D functionality.
• RGB Independent Gamma Adjustment: Supports independent adjustment of the red, green, and blue Gamma for more precise image calibration, enhancing low grayscale performance and white balance.
• Mapping Function: Provides a mapping function to display the receiving card number and Ethernet port information, aiding in the identification of receiving card locations and connections.
• Pre-Stored Screen Settings: Supports pre-stored screen settings that can be loaded for startup or when no signal is present, improving ease of setup.
• Temperature and Voltage Monitoring: Monitors the temperature and voltage of the receiving card without the need for external peripherals.
• Box Liquid Crystal Display (LCD): Supports a 5-pin LCD module to display real-time status information like temperature, voltage, and operating time of the receiving card.
• Error Monitoring: Supports error monitoring of Ethernet communication quality and records errors to help troubleshoot network issues.
• Firmware Program and Configuration Parameters Readback: Enables the reading and saving of the receiving card’s firmware and configuration settings to a local computer for backup or analysis.
• Loop Backup and Dual Program Backup: Supports loop backup for system reliability and ensures configuration parameters and program backups to enhance system stability.
