NovaStar MX30 Hardware Features

Inputs:

• 1x HDMI 2.0 (max. 4096×2160@60Hz(forced); min. 800×600@60Hz)
• Custom EDID's: max. width: 8192 (8192×1080@60Hz); max. height: 7680 (1080×7680@60Hz)
• 1x HDMI 1.4 (max. 4096×1080@60Hz(forced); min. 800×600@60Hz)
• Custom EDID's: max. width: 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
• 1x DP1.1 (max. 4096×1080@60Hz (forced), min. 800×600@60Hz)
• Custom EDID's: max. width: 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
• 2x 3G-SDI
• Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs

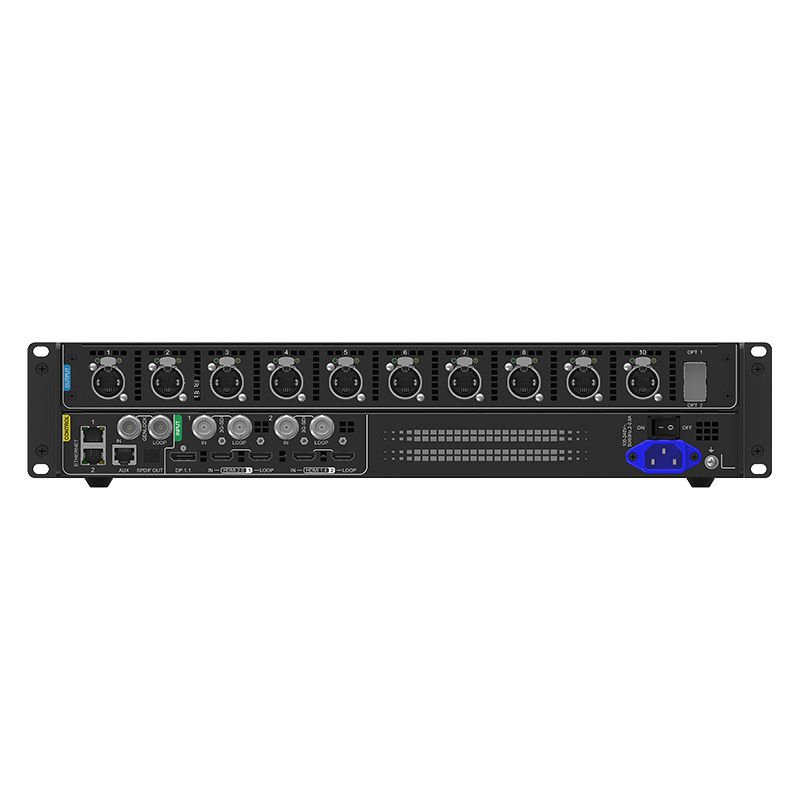

Outputs:

• 10x LED-Out (RJ45)
• 8Bit@60Hz: 659,000 pixels
• 10Bit@60Hz: 494,000 pixels (with A10s Pro)
• 1x HDMI 2.0 Loop
• 1x HDMI 1.4 Loop
• 1x 3G-SDI Loop
• 2x OPT-Out (10G)
• 1x SPDIF (reserved)

Further Features:

• LOCK OF GENLOCK
• 3x Layer
• 14Ch Color Correction
• Full Grayscale Calibration
• Low latency
• Integrated network switch for cascading multiple devices

General Specifications:

• Supply voltage: 100-240V~, 50/60Hz
• Max. power consumption: 55W
• Dimensions: 482.6 x 94.2 x 466.07 mm (WxDxH)
• Weight: 7.2 kg
