NOVASTAR MX20

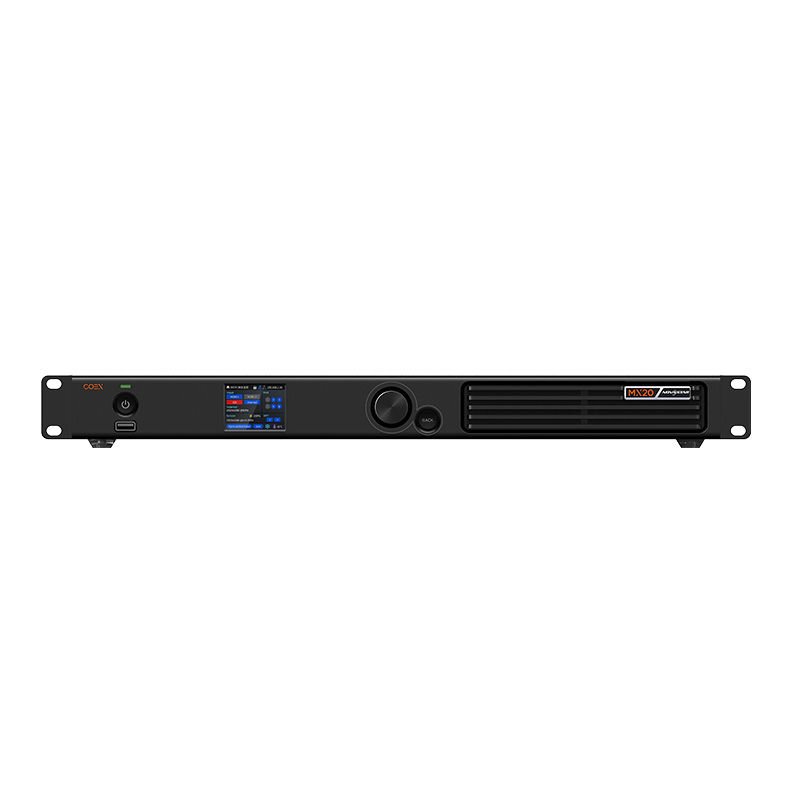

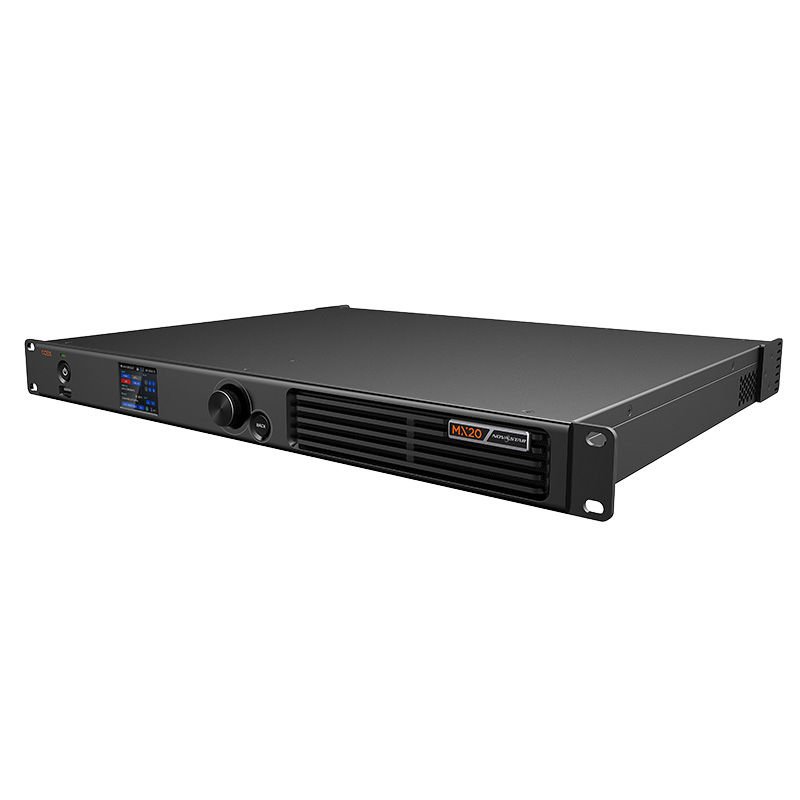

NovaStar MX20

The MX20 is part of NovaStar's COEX series. This controller integrates video processing and controlling in one device.

In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.

Hardware Features:

Inputs:

• 2x HDMI 1.3 (Max: 1920×1200@60Hz; Min: 800×600@60Hz)
• Custom EDID's:
  • Max. Width: 3840 pixels (3840×600@60Hz)
  • Max. Height: 2560 pixels (800×2560@60Hz)
• 1x 3G-SDI
• Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs

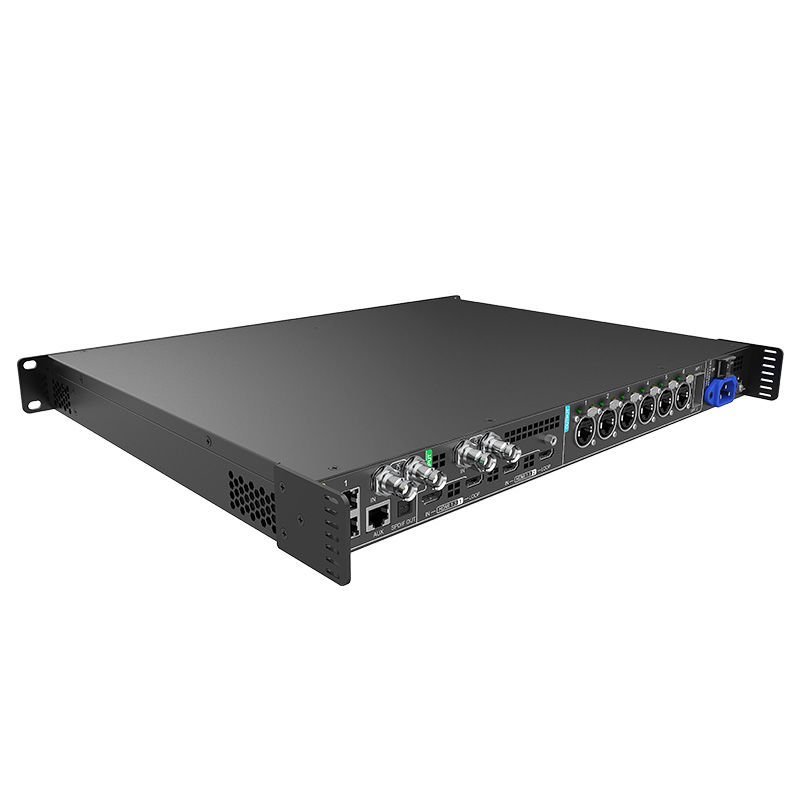

Outputs:

• 6x LED-Out (RJ45):
  • 8Bit@60Hz: 659,000 pixels
  • 10Bit@60Hz: 494,000 pixels
• 2x HDMI 1.3 Loop
• 1x 3G-SDI Loop
• 2x OPT-Out (10G)
• 1x SPDIF (reserved)

Further Features:

• LOCK OF GENLOCK
• 3x Layer
• 14Ch Color Correction
• Full Grayscale Calibration
• Low Latency
• Integrated network switch for cascading multiple devices

General Specifications:

• Supply Voltage: 100-240V~, 50/60Hz
• Dimensions: 482.6 x 49.9 x 384.0 mm (WxDxH)
• Weight: 4.5 kg
