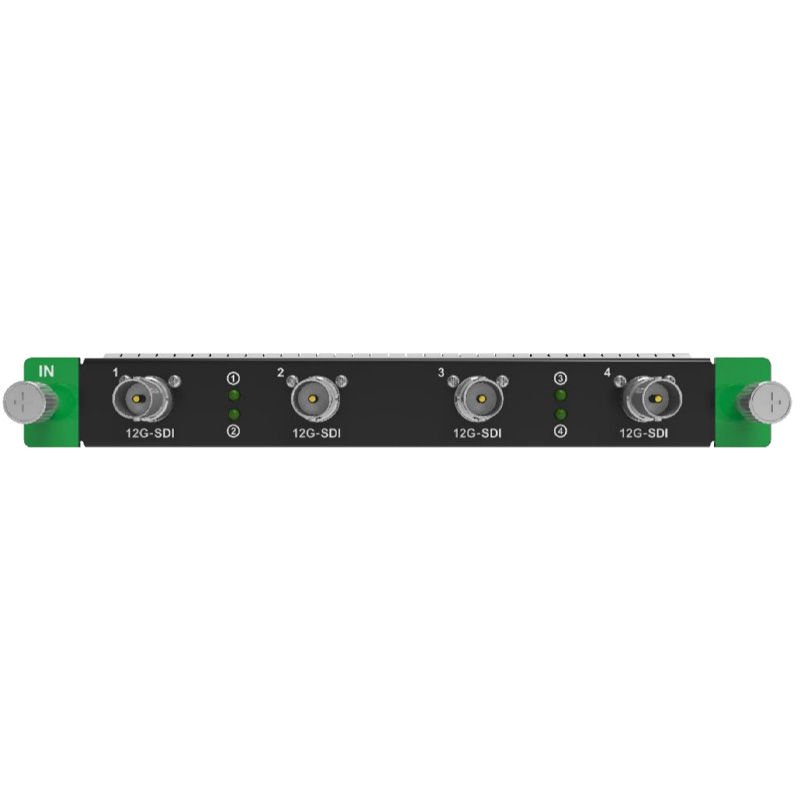

MX_4x12G-SDI Input Card Specifications

Overview:

The MX_4x12G-SDI Input Card is designed for the MX series controllers and offers four 12G-SDI inputs, supporting various video signal formats and providing high-quality signal transmission for professional applications. It supports resolutions up to 4096×2160 at 60Hz and frame rates up to 60Hz, offering high-quality video input for demanding setups.

Hardware Features:

Inputs:

• 4x 12G-SDI Inputs

Resolution:

• Max. Resolution: 4096×2160@60Hz

Signal Standards:

• ST-2082 (12G)
• ST-2081 (6G)
• ST-424 (3G)
• ST-292 (HD)

Frame Rate:

• Supports frame rates up to 60Hz

HDR:

• HDR10
• HLG

Signal Conversion:

• Supports conversion from interlaced to progressive signals

Compatibility:

• Can only be used in conjunction with an MX6000 Pro
