MX_2xDP1.4 Input Card Specifications

Overview:

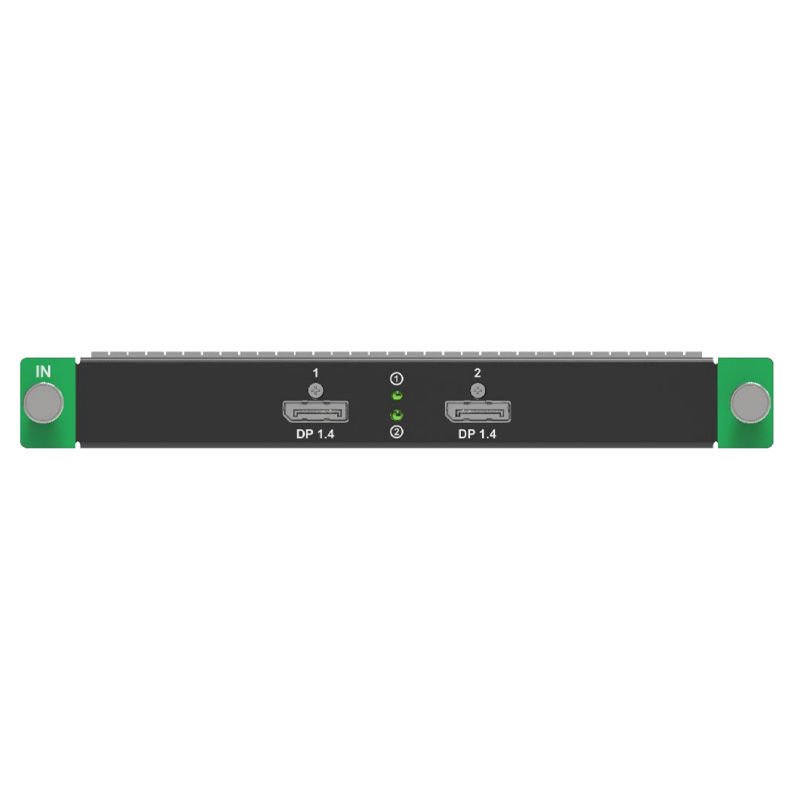

The MX_2xDP1.4 Input Card is a video input card designed for the MX series controllers. It provides dual DisplayPort 1.4 inputs and supports resolutions up to 7680 × 4320 at 30Hz. The card offers versatile frame rate options, HDR support, and compatibility with HDCP 2.3.

Hardware Features:

Inputs:

• 2x DP 1.4

Max Resolution:

• 7680 × 4320 @ 30Hz (Forced)

Min Resolution:

• 1920 × 1080 @ 60Hz

Custom EDID Support:

• Max Width: 7680 px (7680×4320@30Hz)
• Max Height: 7680 px (4320×7680@30Hz)

Frame Rates:

• 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz

EDID Management:

• Supports standard resolution up to 3840 × 2160 @ 60Hz

HDR Support:

• HDR10
• HLG

HDCP Support:

• Supports HDCP 2.3, downward compatible

Compatibility:

• Can only be used in conjunction with an MX6000 Pro / MX2000 Pro
