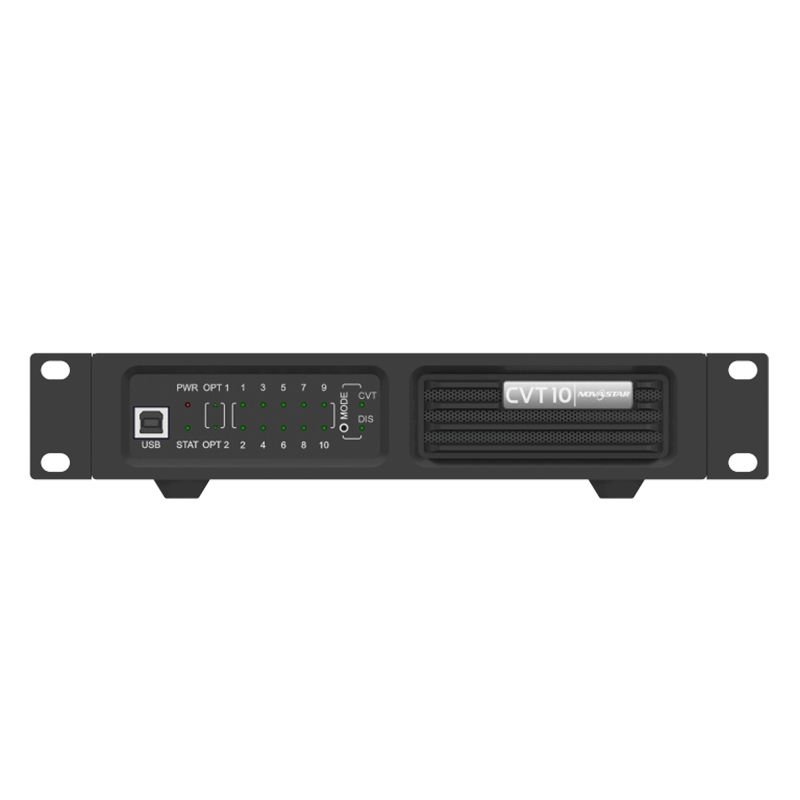

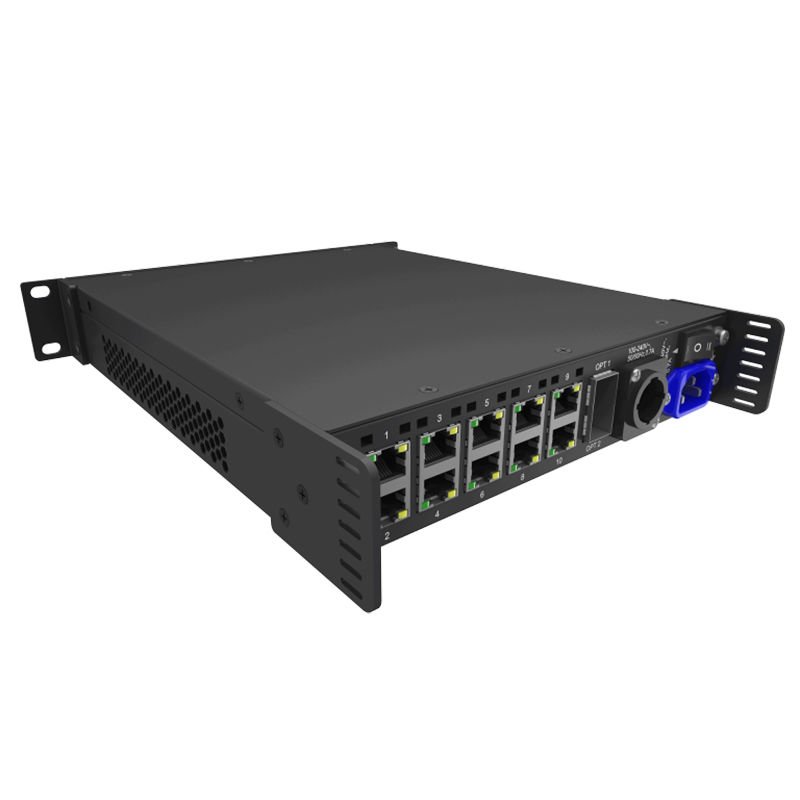

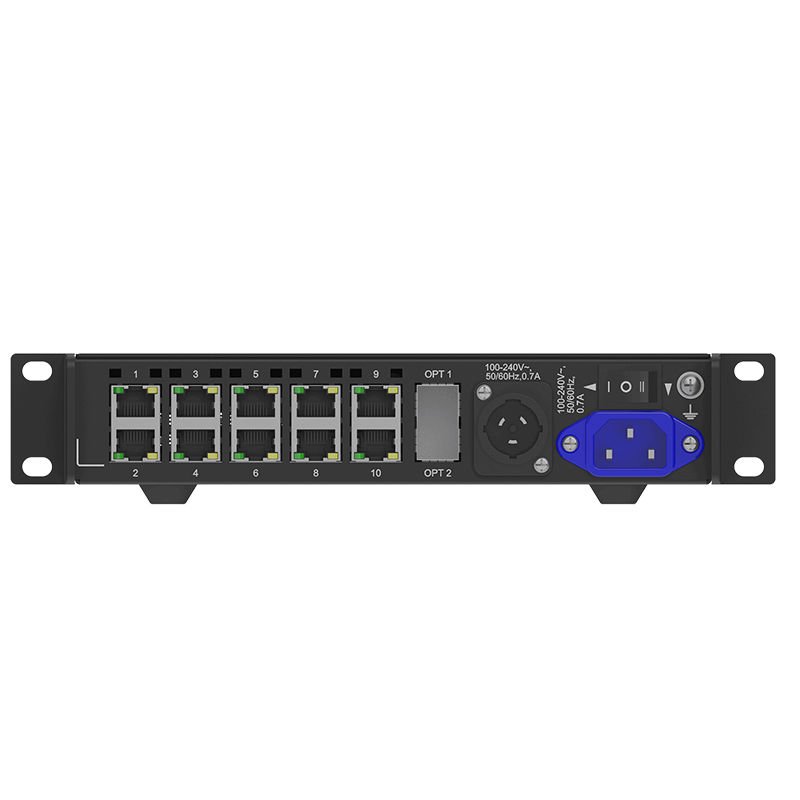

Description of NovaStar CVT10(S/M)

General Features:

• 2x 10G Optical Output (Singlemode)
• 10x 1G Ethernet Ports
• 1x USB-B

General Specifications:

• Supply Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 22Watt
• Dimensions: 254.3 x 50.6 x 290 (WxDxH)
• Weight: 2.1kg

Hint:

• Optical In / Ethernet Out:
  • If the input device has over 8 or 16 LED outputs, the first 8 Ethernet ports of the CVT10-S are available.
  • If the input device has over 10 or 20 LED outputs, all 10 Ethernet ports of the CVT10-S are available.
  • If Ethernet ports 9 and 10 are not available, they will be available after a future upgrade.
• Ethernet In / Optical Out:
  • All 10 Ethernet ports of the CVT10-S are available.
