Novastar NV3210 Receiving Card
Introduction

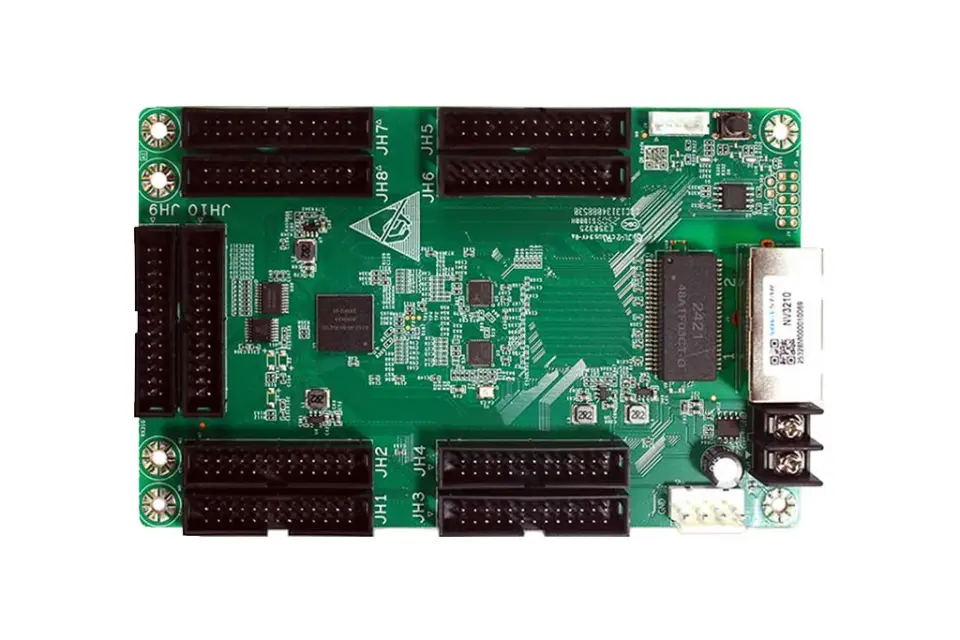

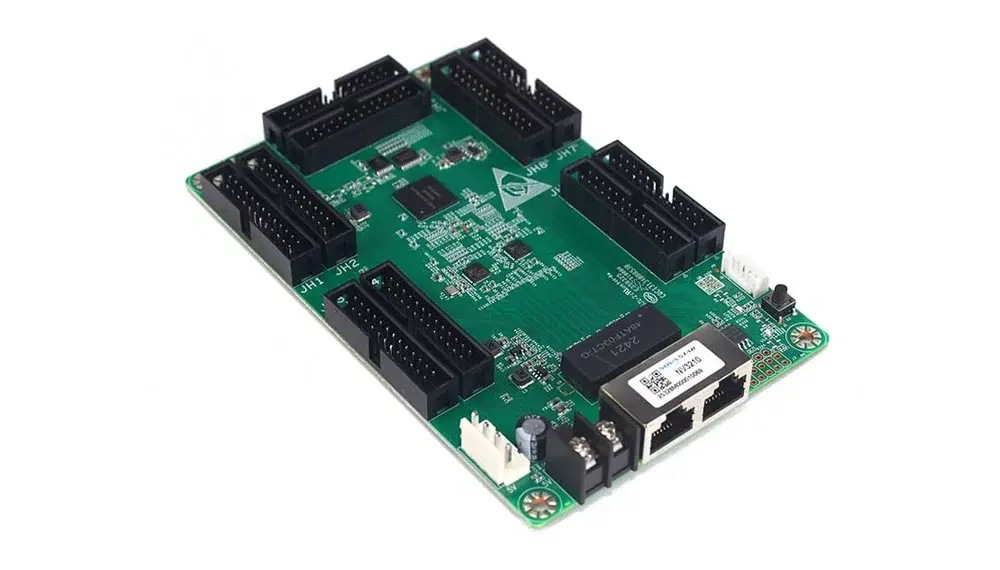

The NV3210 is a receiving card designed for PWM driver ICs by Xi'an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). For 8bit video sources, a single card supports resolutions up to 512×512@60Hz. For 10bit or 12bit video sources, a single card supports resolutions up to 512×384@60Hz. The NV3210 also supports various functions such as Seam Correction, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Low Latency, 3D, and 90° Image Rotation. As a result, it can significantly improve the display effect and user experience. The NV3210 uses 10 standard HUB320F connectors to ensure highly stable communication, supporting up to 40 groups of RGB real pixel data, 40 groups of 3-color sub-pixel data, or 30 groups of 4-color sub-pixel data.
Certifications
RoHS, EMC Class A.
If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact to confirm or address the problem.
