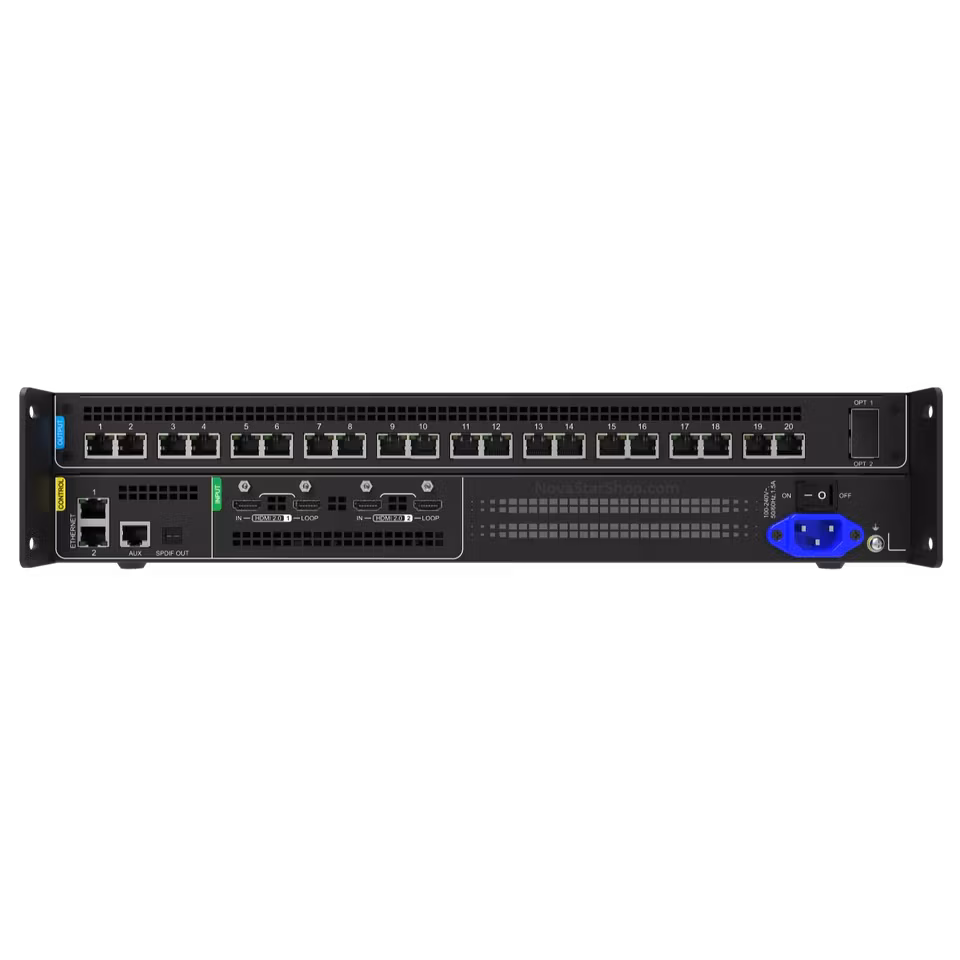

Novastar SP60 PRO

NovaStar SP60 Pro is an advanced LED display controller designed specifically for sub-pixel (virtual pixel) screens, offering superior video processing and control capabilities. With 20 Gigabit Ethernet ports, 2 HDMI 2.0 input ports, and 2 10G optical ports, it provides robust connectivity and flexible output options. Its support for advanced features like HDR, 3D, full-grayscale calibration, and dynamic Booster technology ensures stunning image quality and exceptional performance in various display scenarios. Compatible with NovaStar’s Vision Management Platform (VMP) software, the SP60 Pro offers a seamless and intuitive user experience for managing and controlling LED displays.

Key Features

1. Inputs and Outputs:

• HDMI Input: 2x HDMI 2.0 ports (with loop output), supporting up to 4096×2160@60Hz or 8192×1080@60Hz.
• Output Ports:
  • 20x Gigabit Ethernet ports
  • 2x 10G optical ports (mixed output with Ethernet supported)
  • 1x SPDIF digital audio port
• Control Ports:
  • 2x Ethernet control ports (TCP/IP support, cascading up to 20 devices)
  • 1x Auxiliary port

2. Display Performance:

• Sub-Pixel Technology: Supports mainstream layouts with dynamic rendering modes: Standard, Video, and Document.
• Image Scaling: Four modes: custom, pixel-to-pixel, snap to canvas, and fill screen.
• Image Quality Enhancement: Improved contrast, color richness, and edge detail.
• HDR Support: HDR10 and HLG, compliant with SMPTE ST 2084 and SMPTE ST 2086.
• 3D Capability: Works with 3D emitters and glasses for immersive experiences.

3. Processing and Latency:

• Independent Layers: Supports up to 2 layers, each with 8K×2K resolution or 2 layers at 4K×2K each.
• Low Latency: Less than 1 ms in Send-Only mode and 1 frame in All-In-One mode.
• Full-Grayscale Calibration: With C3200 or CC60 cameras for uniform grayscale and enhanced image quality.
• Dynamic Booster: Real-time frame analysis for enhanced contrast, power consumption control, and extended screen lifespan.

4. Control and Management:

• Preset Configurations: Up to 128 customizable presets with one-click switching.
• VMP Software Control: Seamless connection with NovaStar’s Vision Management Platform (VMP) for intuitive operation.
• Monitoring and Alerts: Real-time monitoring of fan speed, temperature, voltage, and operational status with automatic fault detection.

5. Physical and Environmental Specifications:

• Power Input: 100-240V~, 50/60Hz, 1.5A, Max Power Consumption: 82W
• Operating Temperature: –20ºC to +50ºC, Humidity: 0% RH to 80% RH (non-condensing)
• Dimensions: 482.6mm × 94.2mm × 467.0mm, Net Weight: 7.4 kg
• Certifications: CCC, CE, FCC, IC

6. Additional Capabilities:

• No Rectangle Restriction: Supports irregular screen configurations without counting blank pixels in load capacity.
• Input Source Cropping: Create new input sources without affecting the original.
• Working Modes:
  • Send-Only Controller Mode: Reduced latency
  • All-In-One Controller Mode: Layer and scaling functions enabled
