Description

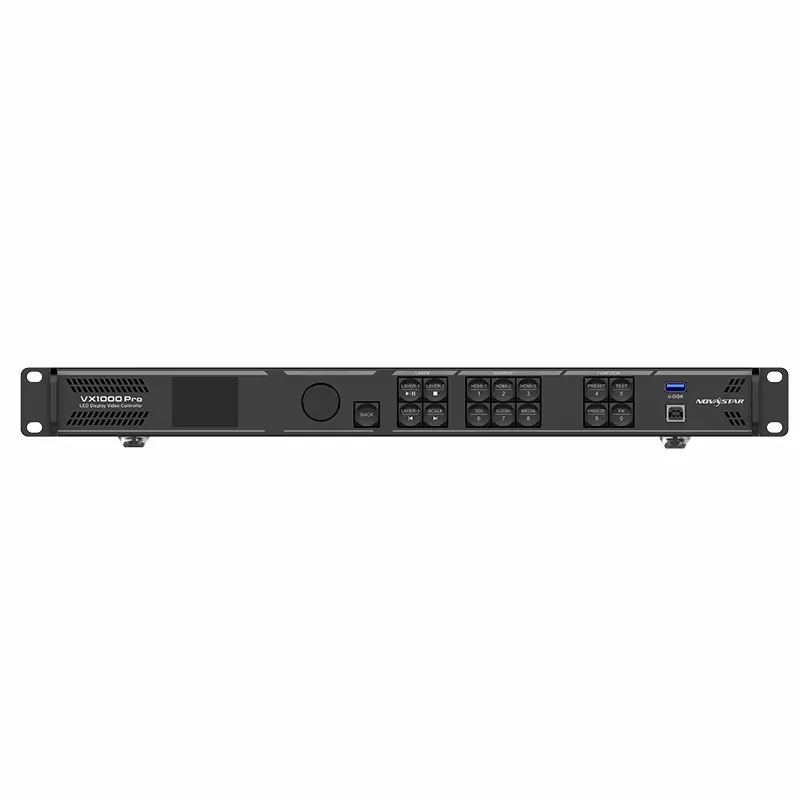

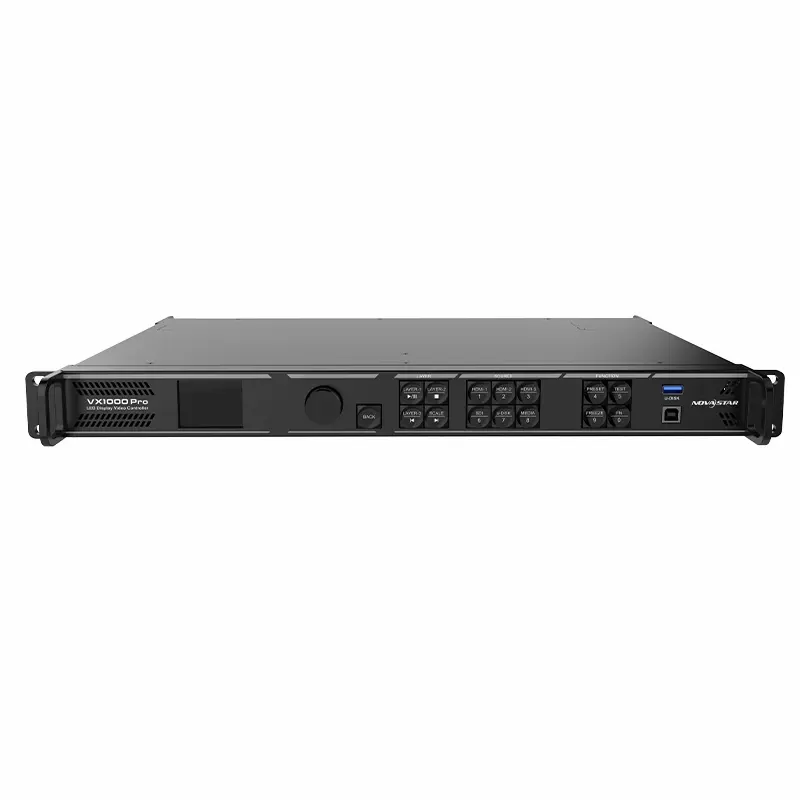

NovaStar VX1000 Pro

The VX1000 Pro is a powerful all-in-one controller that combines video processing and control, supporting up to 6.5 million pixels with a maximum input resolution of 4K×2K@60Hz.

Hardware features:

Inputs:

• 1x HDMI 2.0 (max. resolution 4096×2160@60Hz)
• 2x HDMI 1.3 (max. resolution 1920×1080@60Hz)
• 1x 3G-SDI (max. resolution 1920×1080@60Hz)

Outputs:

• 10x LED output (RJ45)
• 2x OPT-Out (10G)
• 1x HDMI 1.3 (1920×1080@60Hz)

Additional features:

• 3D connector (for 3D emitter)
• genlock
• Supports up to 6 layers (2Kx1K@60Hz)
• Memory for 256 presets
• Light sensor connector

General specifications:

• Supply voltage: AC 100-240V, 50/60Hz
• Dimensions: 482.6 × 409.0 × 94.9 mm (W × D × H)
• Power consumption: 44 W
• Weight: 3.9 kg
