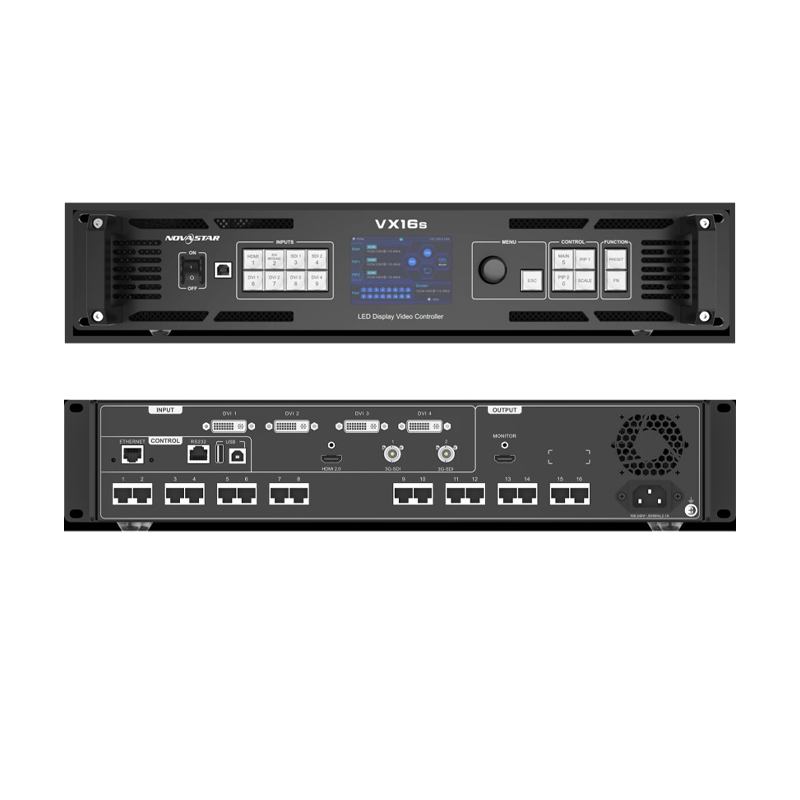

NovaStar VX16S Video Processor

Overview:

The NovaStar VX16S is an all-in-one video controller that integrates video processing, video control, and LED screen configuration into a single unit. It supports a variety of video signals and provides powerful image processing and sending capabilities, making it ideal for high-end rental, stage control systems, conferences, exhibitions, and fine-pitch displays. The VX16S works seamlessly with Novastar’s V-Can software, offering easy operation and rich image mosaic effects.

Key Features:

Input Connectors:

• 2x 3G-SDI
• 1x HDMI 2.0
• 4x SL-DVI

Outputs:

• 16 Ethernet output ports with support for up to 10,400,000 pixels

Layers:

• 3 independent layers
• 1x 4K×2K main layer
• 2x 2K×1K PIPs (PIP 1 and PIP 2)
• Adjustable layer priorities

Advanced Features:

• Up to 4 DVI inputs can form an independent DVI Mosaic
• Decimal frame rate support (23.98Hz, 29.97Hz, 47.95Hz, 59.94Hz, 71.93Hz, and 119.88Hz)
• Supports 3D display effect on the LED screen (output capacity halved when enabled)
• Personalized image scaling with three options: pixel-to-pixel, full screen, and custom scaling
• Image mosaic with up to 4 devices for large-scale screen configurations

Easy Operation & Control:

• Device operation and control via V-Can software
• Up to 10 presets can be saved for future use
• EDID management with support for custom and standard EDID

Device Backup Design:

• Backup mode allows automatic switching to a backup device in case of signal loss or Ethernet port failure on the primary device

Applications:

• Stage control systems
• Conferences and events
• Exhibitions and trade shows
• High-end rental and fine-pitch LED displays
