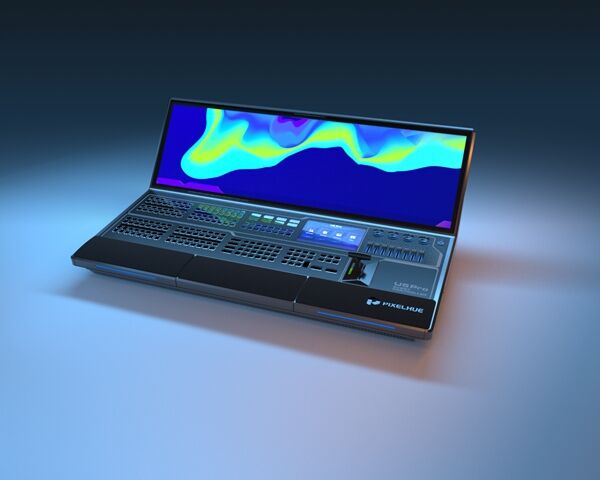

PIXELHUE U5 PRO EVENT CONSOLE Technical Specifications

Dimensions (with handles, rack ears & rack mount):

1129.6 mm × 695.4 mm × 422.7 mm (44.47 × 27.38 × 16.64 inches)

Please refer to the dimension diagram for more details.

Product Weight:

• 46 kg (Net weight)
• 107 kg (With Accessories and flight case)

Noise on Average (@1m, 0.75m height):

40 dB

Electrical Parameters:

• Power Connector: AC100 V‒240 V 50/60 Hz
• Max Power Consumption: 240W

Operating Conditions:

Operating Environment:

• Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity: 0% RH to 80% RH, non-condensing

Storage Environment:

• Temperature: –20°C to +60°C (-4°F to 140°F)
• Humidity: 0% RH to 95% RH, non-condensing

Safety Compliance:

• CE
• FCC
• IC (In progress)

Packing Information:

• 2x Optional Power Cable
• 2x HDMI Cable Male to Male, 3m
• 1x Cat5e Ethernet Cable_P-CAT5, 3m
• 1x USB Type-B to Type-A, 3m
• 1x Flight Case
• 1x Dust Cover
• 1x USB Drive
• 2x Gooseneck Lamp
• 1x Quick Start Guide
• 1x Customer Letter
• 1x Safety Manual
• 1x Certificate of Approval
