Technical Specifications

Key Features

Software

• Playback and real-time editing of all categories of media, including videos, pictures, audio, web pages, acquisition devices, and NDI inputs.
• Various playback modes, including single program, single media, media collection, cross-programs.
• Unlimited layers and unlimited programs.
• Irregular-shaped slices for diversified visual applications.
• Visualized management of slices, programs, playback, and input sources.
• Flexible mosaic realizes your creative ideas.
• Auto preview and preview editing of the next program.
• Media optimization for better media performance.
• Media image quality adjustment.
• Media mirroring, stretching, and cropping supported.
• Crossfade and cut effects on program switching.
• Decoding of various mainstream video formats.
• Output mapping and markings for clear screen and connector correspondence.
• Automatic software startup and program playback.
• Project file management and packaging.

Hardware

• 8K or multiple 4K hardware decoding and rendering for smooth playback and flawless output.
• Plug-in and modular design for higher system stability.
• Frame sync technology for synchronized and smooth display.
• Seamless primary and backup device switching safeguards your on-site operation.
• Infinite device cascading, synchronized by Genlock.
• EDID lock, ensuring no jump of connector resolution and display sequence.
• Intelligent thermal solution.
• Running status indication and fault alarm on front panel display.
• High-quality XLR audio inputs and outputs.
• Central control via TCP/UDP protocol.

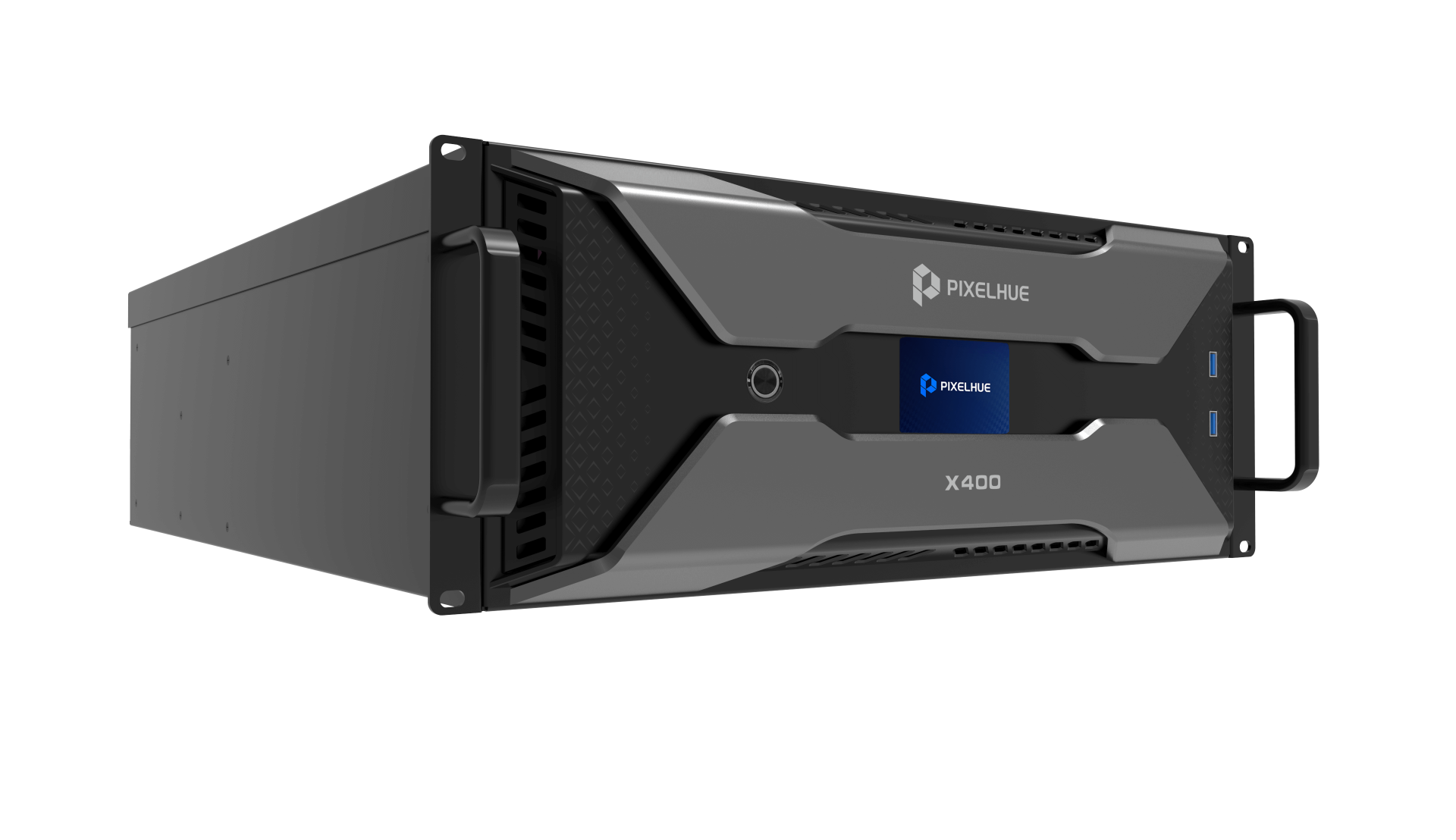

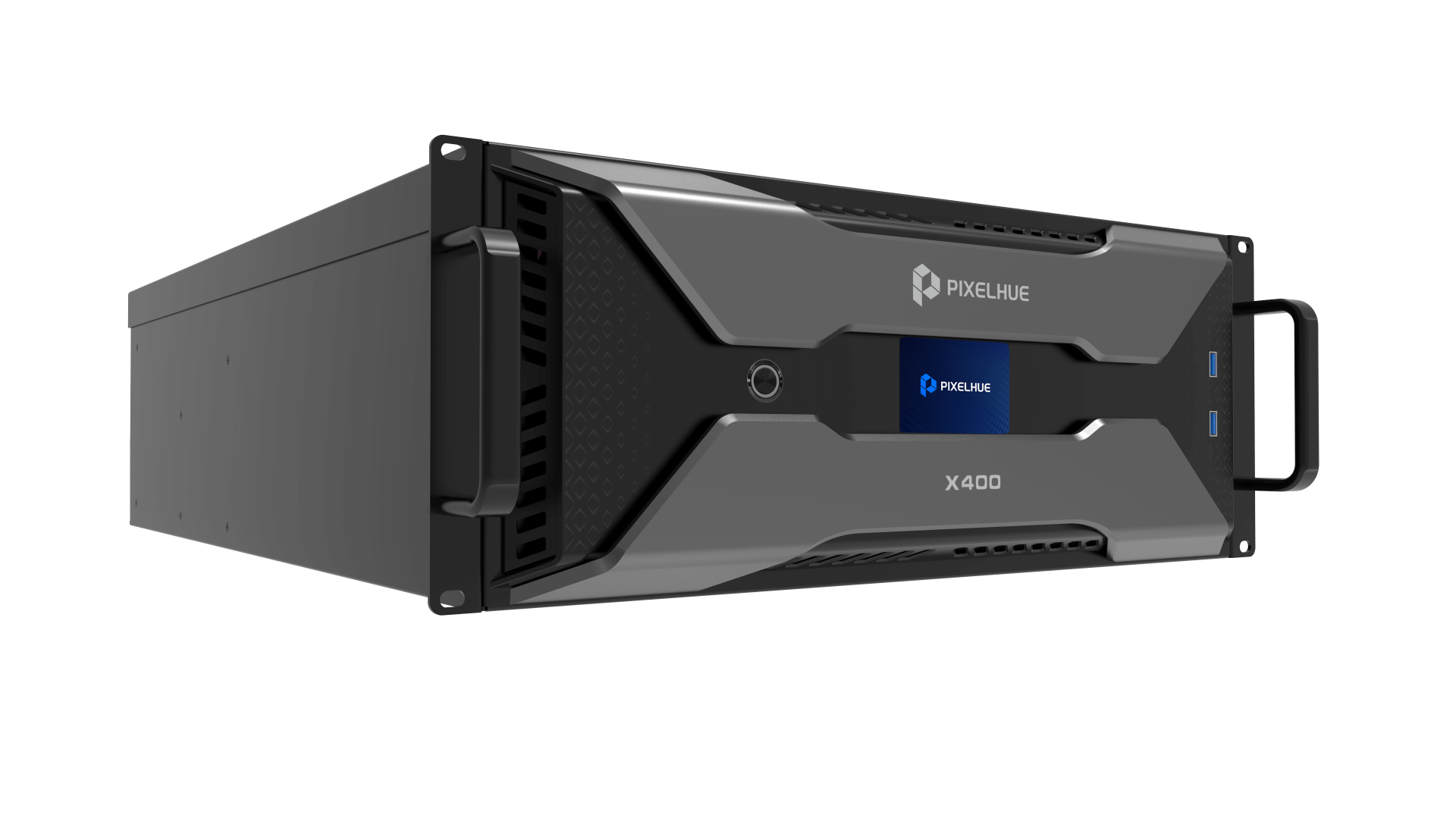

• 4U rack mountable chassis.
• Industrial ruggedized design.

Configuration

• HDMI 1.4 monitoring connector dedicated for software UI.
• Dual SSD built-in with dual OS.
• Dual authorization: dongle + license.

Interactive UI

• Fully-visualized and friendly graphical UI, what you see is what you get.
• Customizable graphical UI layout.
• UI lock for safer unattended operation.

Performance

Capability

• Smooth playback of 1x 8K4K@60fps video, 4x 4K2K@60fps / 6x 4K2K@30fps videos, or 15x 2K1K@30fps videos.
• Unlimited layers.

Outputs

• 8192×1080@60Hz/4096×2160@60Hz or 2048×1152@60Hz output card.
• 6x 4K or 24x 2K mosaic outputs.
• 4:4:4 10-bit color sampling.
• Genlock and frame sync card.

Inputs

• 1920×1200@60Hz or 4096×2160@30Hz input card.
• 4x 2K or 4x 4K inputs.
• NDI, streaming media, and web page inputs.

Audio

• XLR audio: 1x AUDIO IN, 1x AUDIO OUT L, 1x AUDIO OUT R.
• 1x 3.5 mm audio input, 1x 3.5 mm audio output.
• Formats: mp3, aac, flac, amr, ape, wav, wma, ogg.

Control

• Built-in Pilot MS3 Professional Multimedia Playback Software.
• Central control via TCP/UDP protocol.
• 1x HDMI 1.3 connector for software UI.
• 2x USB on front panel, 4x USB on rear panel.
