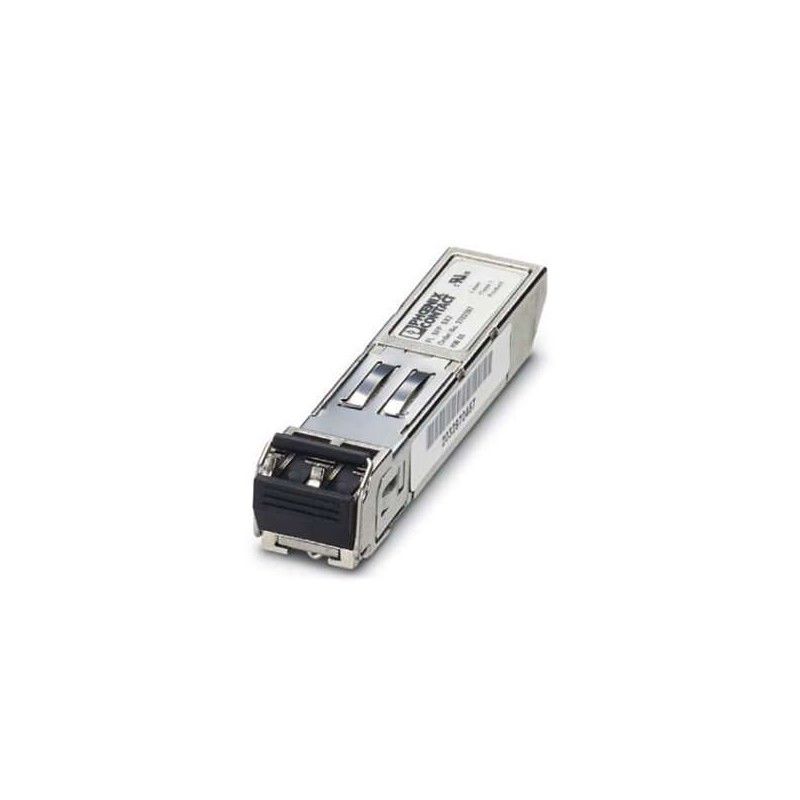

Description of the SFP Module (MM) 2.5G

Module Type:

• SFP+ (Small Form-factor Pluggable Plus)

Connector / Polish:

• LC-Duplex PC

Interface:

• Multimode

Compliance Code:

• SR (Short Range)

Distance:

• Up to 300 meters

Temperature Range:

• 0°C to 70°C

Bandwidth:

• 600 Mbit/s - 10.31 Gbit/s

Digital Diagnostic Management (DDM):

• Yes, internally calibrated

Power Consumption:

• Typically 1 W

CDR (Clock Data Recovery):

• None

SGMII (Serial Gigabit Media Independent Interface):

• No

Inbuilt FEC (Forward Error Correction):

• No

Power Budget (dB):

• 3.4 dB

Transmit min/max per lane:

• -6.5 dBm / -1 dBm

Receiver min/max per lane:

• -9.9 dBm / -1 dBm (overload) @ 10G

Wavelength TX (Typical):

• 850 nm

Wavelength TX (Range):

• 840 - 860 nm

Wavelength RX (Typical):

• 850 nm

Wavelength RX (Range):

• 840 - 860 nm

Laser:

• VCSEL (Vertical-cavity surface-emitting laser)

Receiver Type:

• PIN (Positive Intrinsic Negative)

Modulation:

• NRZ (Non-Return to Zero) @ 10G

Transmit and Dispersion Penalty:

• 0 dB

Extinction Ratio:

• 3 dB

Supported Protocols:

• 10G Ethernet
• 10G Fibre Channel
• 8G Fibre Channel
• Gigabit Ethernet
• LTE CPRI and OBSAI (Various Data Rates)
