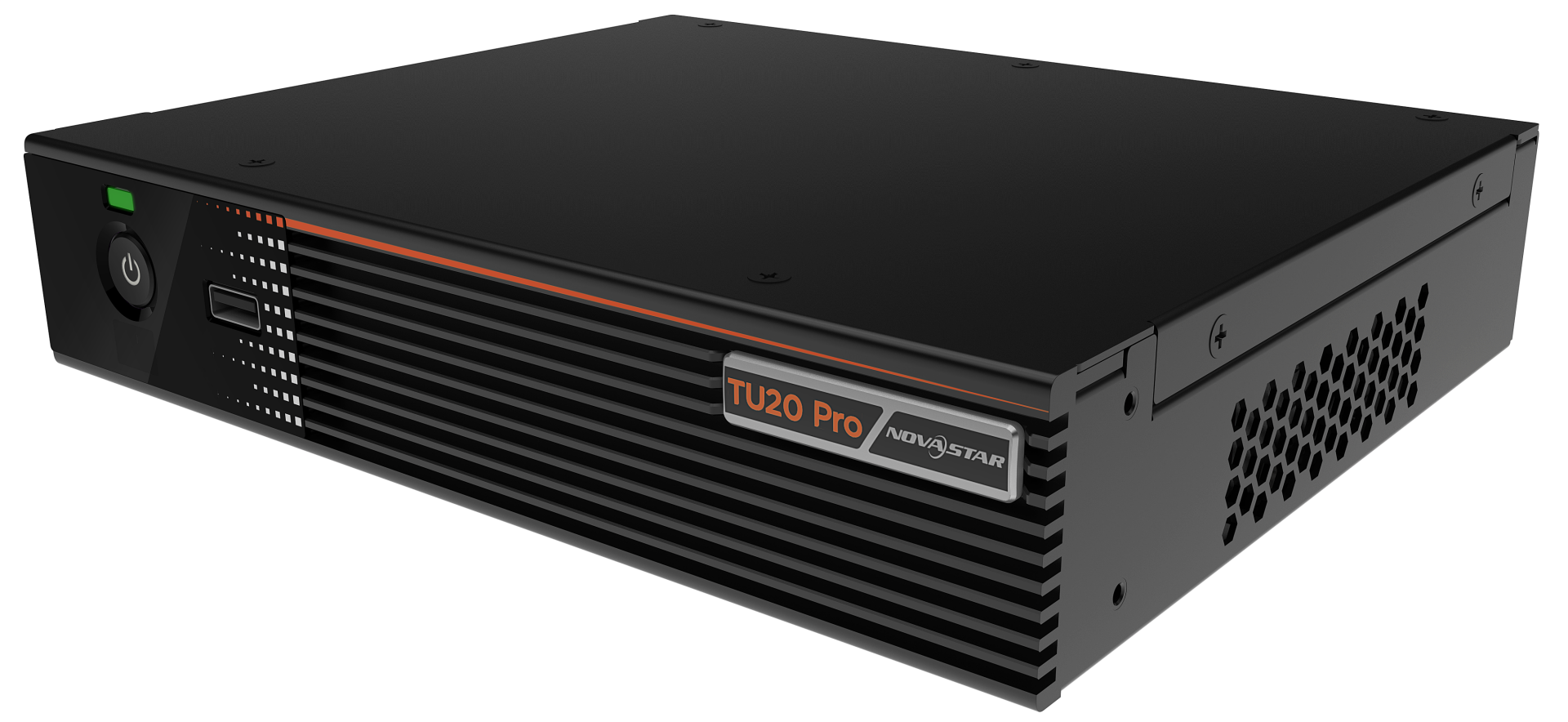

TU20 Pro

The NovaStar TU20 Pro is a playback control processor specifically designed for indoor LED screens. It integrates the Android system and sending card functions into a single unit, allowing the operation of third-party applications and offering robust interaction and playback control capabilities.

Key Features:

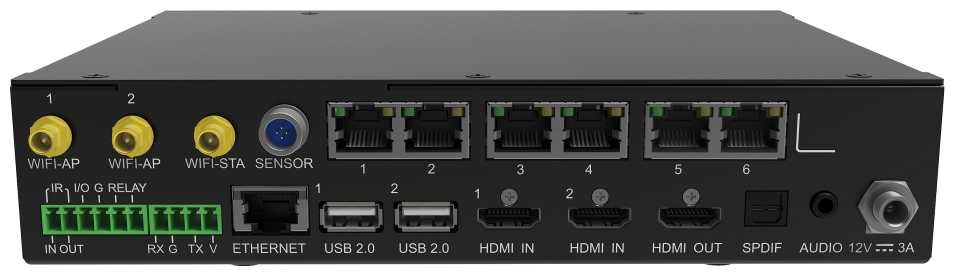

• Inputs:
  • 2× HDMI 1.3
  • 3× USB 2.0


• Outputs:
  • 6× Ethernet ports, supporting a total capacity of up to 3.9 million pixels
  • 1× HDMI 1.3 for monitoring or video output
  • 1× 3.5 mm audio output
  • 1× SPDIF digital audio output


• System Functions:
  • Android 11-based desktop UI system, supporting third-party applications
  • Wireless screen mirroring from Windows, macOS, iOS, and Android devices
  • Screen drawing and commenting capabilities
  • Reverse control via the ViPlex Handy app
  • Playback control through mobile app, remote, or USB drive


• Performance:
  • Quad-core 1.8 GHz ARM A55 processor
  • 4 GB RAM
  • 32 GB internal storage
  • Supports high-definition video decoding of H.264 and H.265 at 4K@60Hz


• Additional Features:
  • Dual Wi-Fi modes (Wi-Fi 6 for AP and Wi-Fi 5 for Station)
  • Output image scaling with width ranging from 64 to 4096 pixels and height from 64 to 1920 pixels
  • Total device load capacity of up to 3.9 million pixels

The TU20 Pro is ideal for various applications, including corporate exhibition halls, meeting rooms, educational halls, hotel lobbies, and telemedicine consultations. Its comprehensive features and user-friendly design make it a versatile solution for diverse LED display needs
