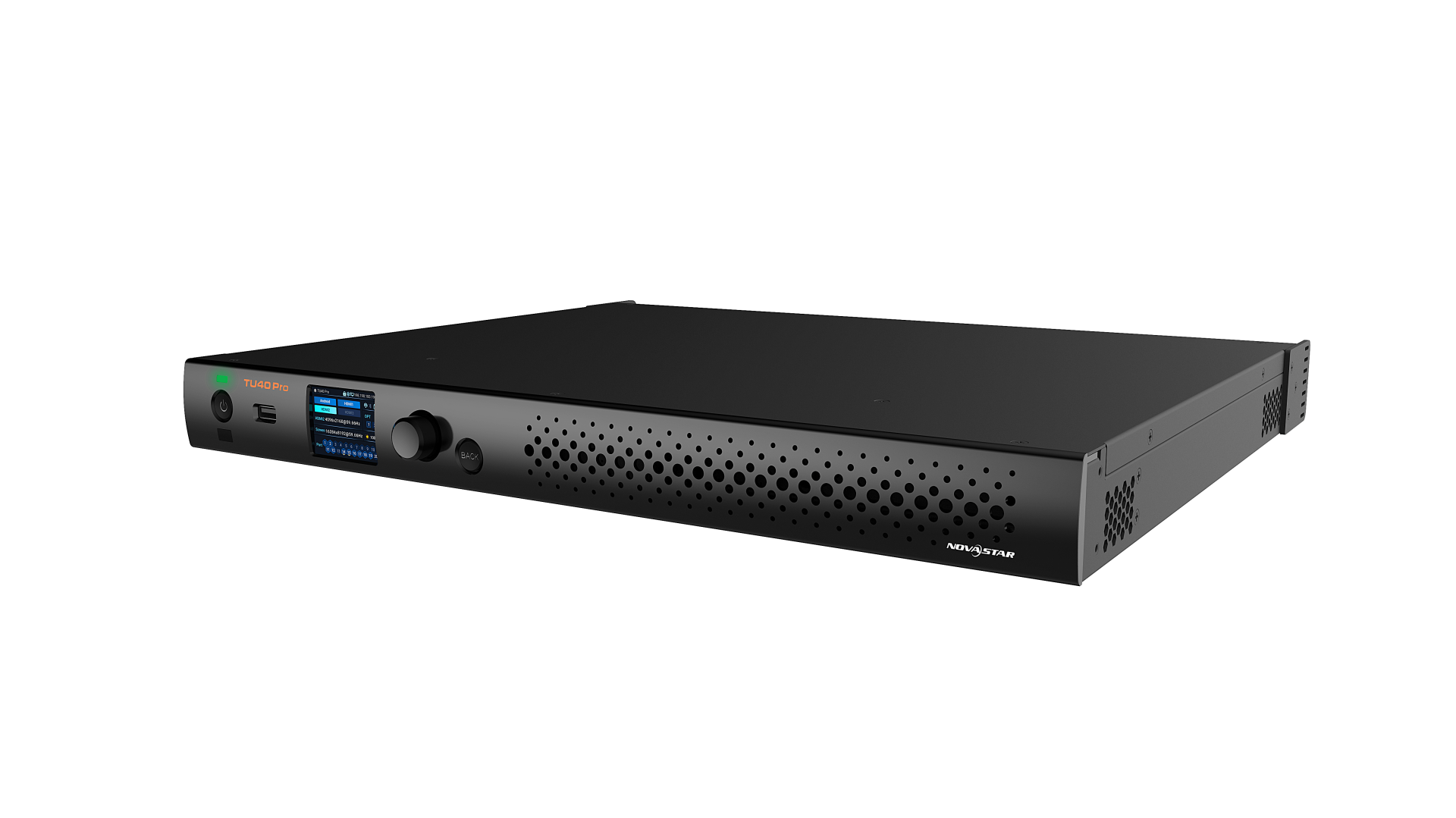

TU40 Pro

Description

Novastar TU40 Pro is a video playback control processing product of Novastar.
Integrated with Android application system, sending function, and video processing, it can add third-party APP applications and has powerful interaction and display capabilities display and broadcast control capabilities.

input:
HDMI1.3*1
HDMI2.0*2
USB2.0*2
USB3.0*1

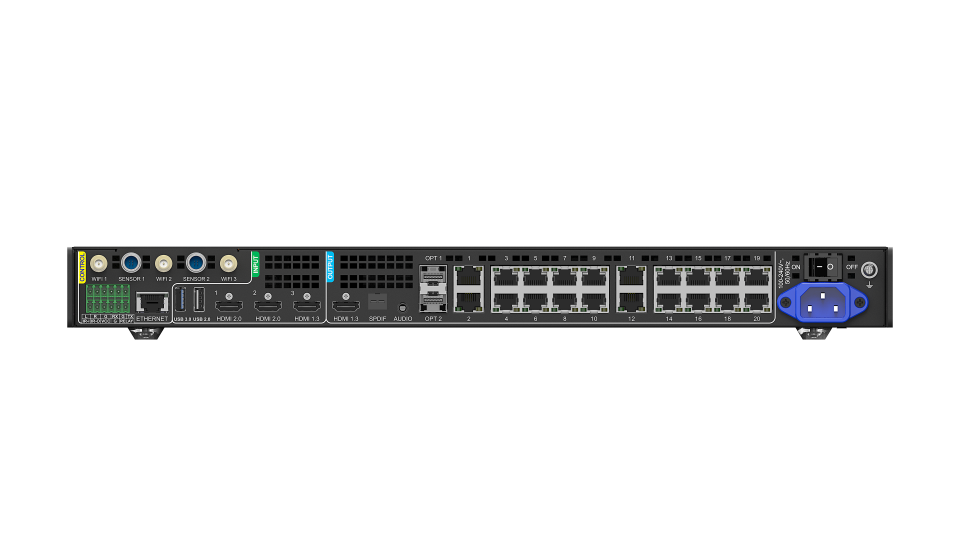

Output:
HDMI1.3*1 （Pre supervision）
1000M lan*20
fiber*2
audio*4 (SPDIF+3.5mm+HDMI eARC+PHOENIX)
Max Width:16394 dots
Max Hight: 8192 dots

Customized desktop UI system based on Android 13.0, capable of adding third-party APP applications.
Support whiteboard writing and annotation.
Support wireless screen casting for multiple platform terminals.
The maximum resolution can reach 3840 × 10 ^ 3 2160@30Hz Including Windows, Mac OS, iOS, and Android systems.
Cooperating with the Screen Elf APP can achieve mirror reversal control.
The speaker controls the LED conference screen in reverse through the terminal for operation.
Powerful processing performance.
A 4-core A73+4-core A53 ARM processor with a maximum clock speed of 2.2GHz.
Supports H.264 4K@30Hz The H.2654K@60Hz High definition video decoding.
Onboard 8GB of RAM.
128GB internal storage space.
Excellent playback performance.
Supports 1 channel of 8K (only H.265/HEVC, VP9 encoding formats), 3 channels of 4K, 7 channels of 1080p, and 10 channels of 720p.

Powerful processing performance
− Quad-core A73 + quad-core A53
ARM processor @ 2.2 GHz
− Support high-definition video
decoding of H.264 and H.265 at
4K@60Hz.
− 8 GB of onboard RAM
− 128 GB of storage space
