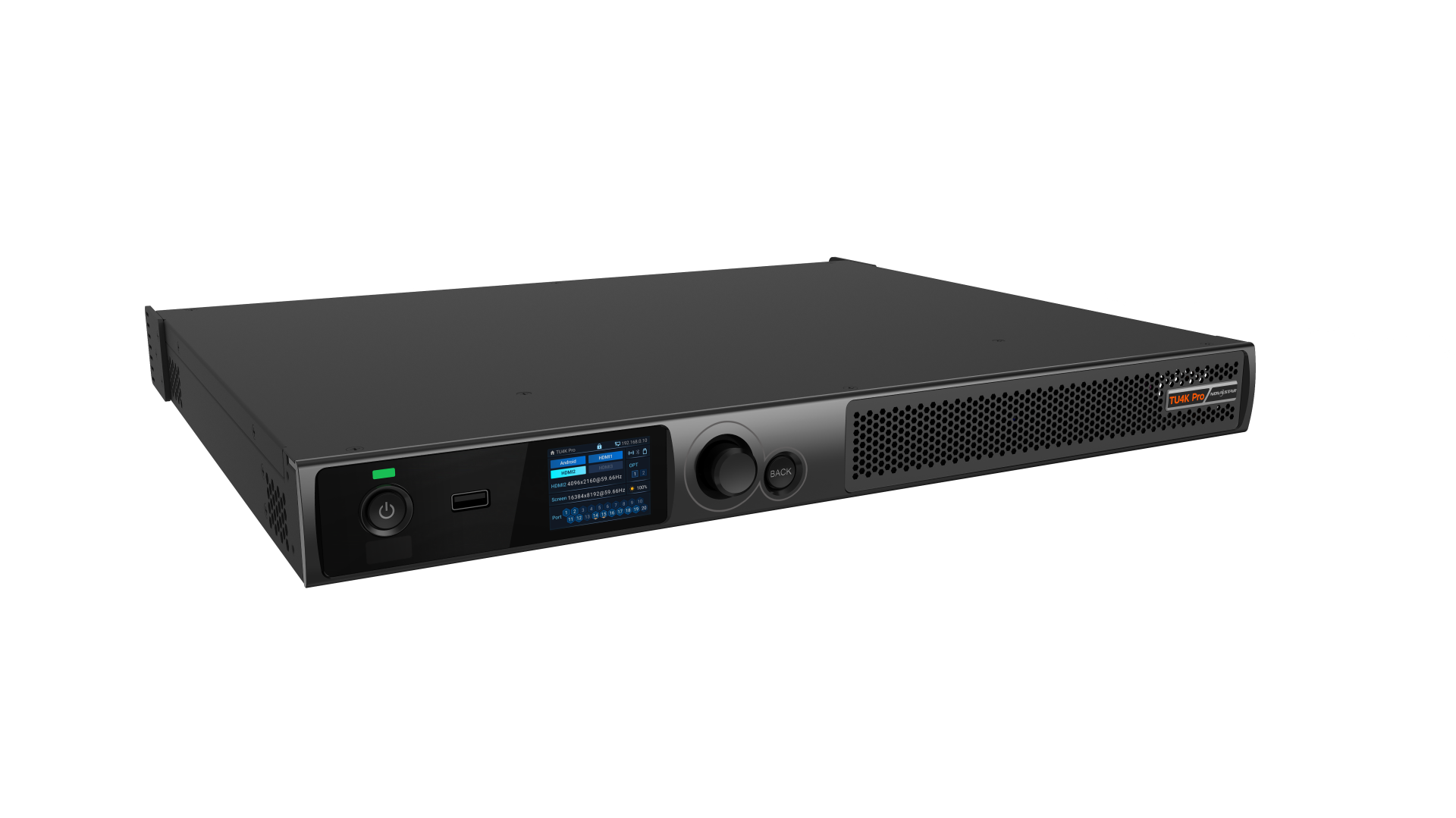

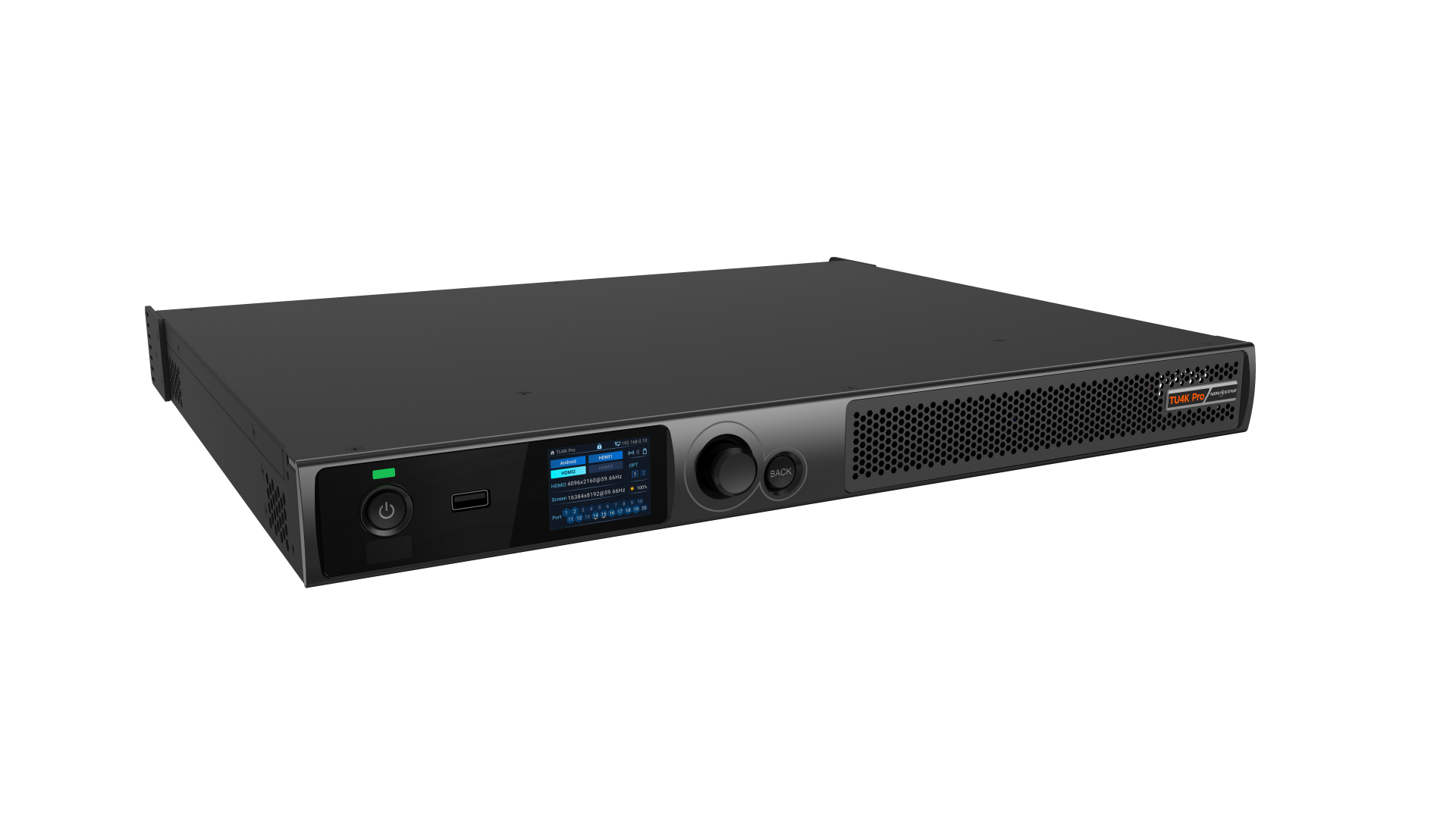

TU4K Pro

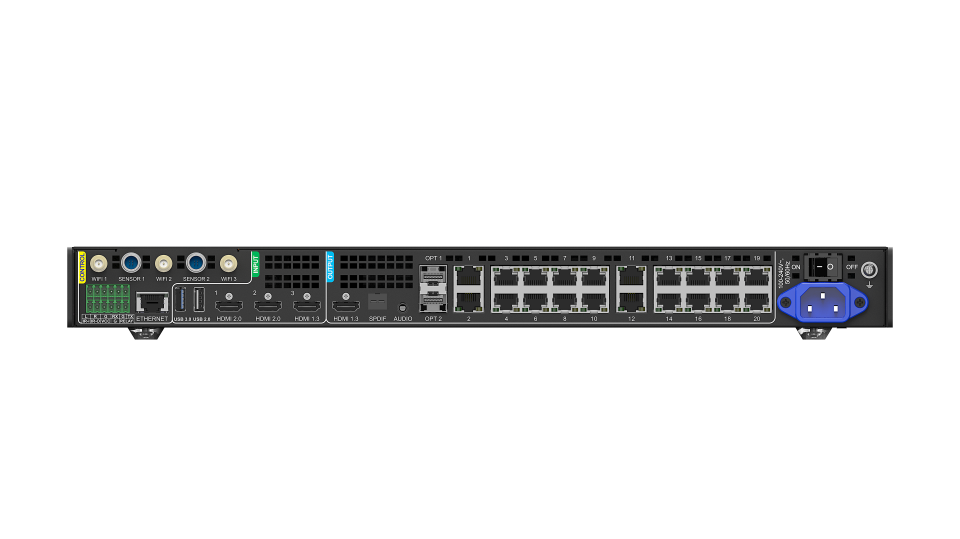

nputs and Outputs

• 1x HDMI 1.3 input
• 2x HDMI 2.0 inputs
• 2x USB 2.0 inputs
• 1x USB 3.0 input
  − For connecting a variety of USB devices such as mouse, keyboard,camera, and speaker
  − For USB playback, firmware update and exporting logs
• 1x HDMI 1.3 output
  Output monitoring for device debugging
• 20x Gigabit Ethernet outputs
• 2x OPT outputs, for fiber converting applications
• 4x audio outputs
  − 1x SPDIF digital audio output
  − 1x 3.5-mm audio output
  − 1x HDMI eARC audio output
  − 1x Phoenix audio output
• Output image scaling
  − Width range: 64 to 16384 pixels
  − Height range: 64 to 8192 pixels
  − Total device load capacity ≤ 13 million pixels

System Functions

• Android 13.0-based desktop UI system,supporting third-party apps
• Screen drawing and commenting
• Wireless screen mirroring from multiple platforms
  − Max resolution: 3840×2160@30Hz
  − Mirror from Windows, macOS, iOS and Android terminals
• Working with ViPlex Handy to achieve reverse control
  The speaker can reversely control the LED screen via the terminal.
• Powerful processing performance
  Allow for Wi-Fi and wireless hotspot connections at the same time.
• Image quality enhancement
  − Quad-core A73 + quad-core A53 ARM processor @ 2.2 GHz
  − Support high-definition video decoding of H.264 and H.265 at 4K@60Hz.
  − 8 GB of onboard RAM
  − 128 GB of storage space
• Excellent playback performance
  Supports playback of 2 streams of 4K video, 6 streams of 1080p video, 10 streams of 720p video, or 20 streams of 360p video.
• Playback control via different terminals
  − Intelligent playback control via mobile app: Install ViPlex Handy on your smartphone for program editing and publishing and screen control.The HDMI sources can also be used
  as program content.
  − Convenient playback control via remote: Perform playback control of local programs and simple program editing on the screen.
  − USB playback: Support standalone playback, plug and play, copy and play.
• Dual Wi-Fi modes
  Allow for Wi-Fi and wireless hotspot connections at the same time.
• Image quality enhancement
  The display effect can be dramatically improved from the three dimensions of contrast, details and color. The overall sense of image gradation is richer and more delicate; the edge details are clear and sharp; the color is bright and vivid.
• Support for HDR10 and Image Booster
• Effect adjustment
  Offer 4 display modes including standard, meeting, vivid and skin, and allow you to adjust the brightness, color temperature, saturation, contrast, etc.
• Eye comfort mode

Device Controls

• Gigabit Ethernet control port with TCP/IP protocol support
• Low-power (less than 0.5 W) mode during standby,and wakeup from standby via Infrared remote
• A relays can be connected for convenient power management of LED screen
• Intelligent control via mobile app
  Download and install VNNOX Care on your smartphone to easily configure the LED screen within just 10 minutes. The app also allows you to scan QR codes to set up screens, connect and adjust the topology by taking photos, and monitor the status of your devices.
• Control the LED screen with a remote
• Bluetooth 5.1
  Can connect to the Bluetooth voice remote, Bluetooth mouse, Bluetooth keyboard, Bluetooth sound system and other common peripherals.
• Control via front panel LCD (Touch control not supported)
• Support peripherals such as camera,sound system and infrared touch frame.
  Please contact NovaStar technical support for information on supported peripheral device models.

The TU4K Pro product package in this diagram is described in the packing list in the specifications table.

Electrical Specifications
Input voltage：100-240V~, 50/60Hz, 2.5A Max
Rated power consumption: 53.9 W
Storage Space
RAM: 8 GB (TU4K: 4 GB)
Internal storage: 128 GB
Operating Environment
Temperature: –20°C to +50°C
Humidity: 5% RH to 85% RH, non-condensing
Storage Environment
Temperature: –20°C to +70°C
Humidity: 5% RH to 95% RH, non-condensing
Physical Specifications
Dimensions: 445.0 mm × 383.0 mm × 49.9 mm
Net weight: 4.54 Kg
Gross weight: 8.10 Kg
Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications.
Packing Information
Packing box: 590.0 mm × 520.0 mm × 180.0 mm, kraft paper box
Accessory box：408.0 mm × 294.0 mm × 51.0 mm, white cardboard box
List:
- 1x TU4K Pro
- 1x Power cord
- 1x Bluetooth voice remote
- 1x Ethernet cable
- 1x HDMI cable
- 2x Female Phoenix connectors (6 pins)
- 3x Antennas
- 2x Hanging brackets
- 1x Certificate of Approval
The amount of power consumption may vary depending on various factors such as product settings, usage, and environment.
