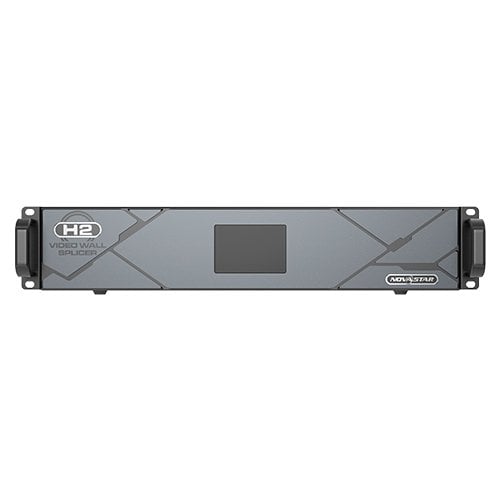

H2 Videowall Splicer

The H2 is part of NovaStar's latest generation of video wall splicers, offering outstanding image quality, specifically designed for fine-pitch LED displays. The H2 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. Its modular and pluggable design allows flexible configuration, with "hot-swapping" of input and output boards, making it suitable for a wide range of applications.

Input and Output Cards:

• H_4*DVI input card - Plug-in input card
• H_4*HDMI input card - Plug-in input card
• H_1*HDMI2.0 + 1*DP1.2 input card - Plug-in input card
• H_1*HDMI2.0 input card - Plug-in input card
• H_2*HDMI2.0 input card - Plug-in input card (Specialized for H15)
• H_2xRJ45 IP input card - Plug-in input card
• H_4*3G/SDI input card - Plug-in input card
• H_2*CVBS + 2*VGA input card - Plug-in input card
• H_1*12G/SDI input card - Plug-in input card
• H_4*DVI output card - Plug-in output card
• H_4*HDMI output card - Plug-in output card
• H_1*HDMI2.0 output card - Plug-in output card
• H_16*RJ45 + 2*Fiber sending card - 16 Ports Sending Subcard
• H_20*RJ45 sending card - 20 Ports Sending Subcard
• H_2xRJ45 + 1xHDMI1.3 monitoring card - RJ45 & Monitoring Subcard
• H_800W Power Supplier - Power Supplier

Hardware Features:

• Two types of 4K Sending Cards: H_20xRJ45: Manages up to 13 million pixels, H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card: 4x 2K×1K@60Hz, 2x 4K×1K@60Hz, 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-Swap" function for all input & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras with input mosaic
• Automatic decryption of HDCP protected sources
• Multi-screen management and web control

Specifications:

• Max. Number of Input Cards: 4
• Max. Number of Input Channels: 16
• Max. Number of Output Cards: 2
• Max. Loading Capacity: 26,000,000 Pixels
• Max. Number of Layers: 32

General Specifications:

• Supply Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 210W
• Dimensions: 482.6 x 88.1 x 455mm (WxDxH)
• Weight: 15.6kg

Applications:

The H2 Videowall Splicer is ideal for fine-pitch LED displays, providing seamless video wall experiences in various applications such as broadcast, entertainment, and public display systems.

Important Note:

This item is an enclosure only. All input/output cards must be ordered separately.
