Description

H2O Videowall Splicer

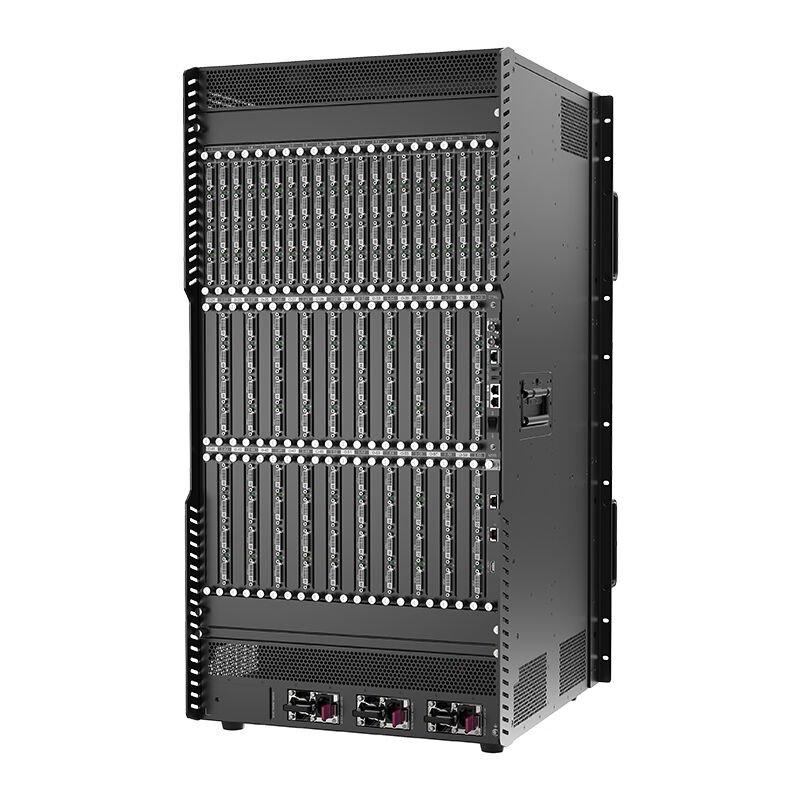

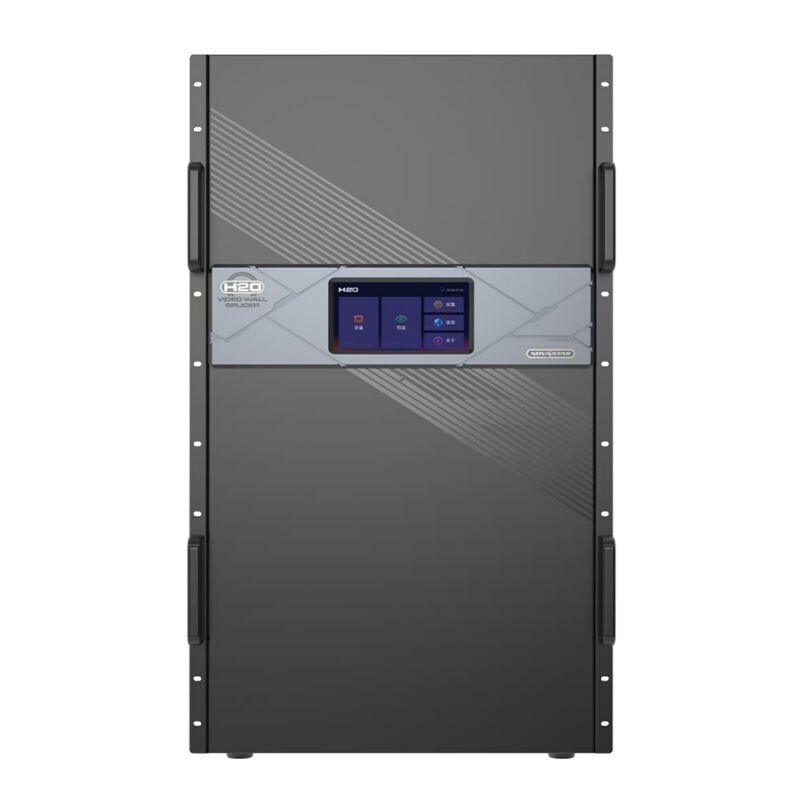

The H20 belongs to NovaStar's latest generation of video wall splicers, characterized by outstanding image quality and specifically designed for fine-pitch LED displays. The H20 can operate either as a splicer integrating both video processing and video control functions, or as a dedicated splicing processor. The entire unit features a modular, pluggable design, allowing for flexible configuration and hot-swapping of input and output cards. Thanks to its excellent features and stable performance, the H20 can be used in a wide variety of applications.

Hardware Features

• Three different types of 4K Sending Cards are available:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (including 2x opt-out)
  • H_4xSFP+: Manages up to 20.8 million pixels
• Various configurations are possible on one sending card:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 2x 4Kx2K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input and output cards
• "Hot-swap" function for all input and output cards
• IP Input Card H_2xRJ45 supports up to 100 IP cameras including input mosaic
• Automatic decryption of HDCP-protected sources
• Multi-Screen Management
• Web Control

Specifications:

• Maximum number of input cards: 40
• Maximum number of output cards: 20
• Maximum number of input channels: 160
• Max. Loading Capacity: 460,000,000 pixels
• Maximum number of layers: 160

General specifications:

• Supply voltage: AC 100-240V, 50/60Hz (The device is supplied with three power supplies. Installation of a backup power supply is optional.)
• Power consumption: 1800 watts
• Dimensions: 482.6 x 905.2 x 533.0 mm (W x D x H)
• Weight: 61.8 kg
