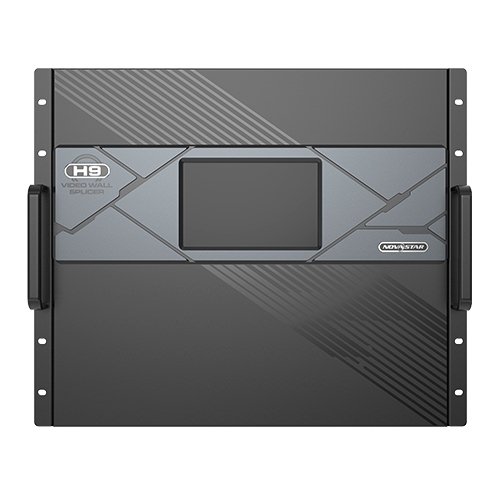

H9 Videowall Splicer

The H9 is NovaStar's latest generation of video wall splicers, designed specifically for fine-pitch LED displays. It can operate as both a splicer, integrating video processing and video control functions, or as a dedicated splicing processor. The unit is modular and pluggable, enabling flexible configuration and "hot-swapping" of input and output boards, providing versatile functionality for a range of applications.

Hardware Features:

• Two different types of 4K Sending Cards:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-Swap" function for all input and output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras with input mosaic
• Automatic decryption of HDCP protected sources
• Multi-screen management
• Web control

Input and Output Cards:

• H_4×DVI input card (Plug-in input card)
• H_4×HDMI input card (Plug-in input card)
• H_1×HDMI2.0+1×DP1.2 input card (Plug-in input card)
• H_1×HDMI2.0 input card (Plug-in input card)
• H_2×HDMI2.0 input card (Plug-in input card, specialized for H15)
• H_2xRJ45 IP input card (Plug-in input card)
• H_4×3G/SDI input card (Plug-in input card)
• H_2×CVBS+2×VGA input card (Plug-in input card)
• H_1×12G/SDI input card (Plug-in input card)
• H_4×DVI output card (Plug-in output card)
• H_4×HDMI output card (Plug-in output card)
• H_1×HDMI2.0 output card (Plug-in output card)
• H_16×RJ45+2×Fiber sending card (16 Ports Sending Subcard)
• H_20×RJ45 sending card (20 Ports Sending Subcard)
• H_2xRJ45+1xHDMI1.3 monitoring card (RJ45 & Monitoring Subcard)

Specifications:

• Max. Number of input cards: 15
• Max. Number of input channels: 60
• Max. Number of output cards: 5
• Max. Loading Capacity: 65,000,000 Pixels
• Max. Number of layers: 80

General Specifications:

• Supply Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 450W
• Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
• Weight: 35kg

ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.
