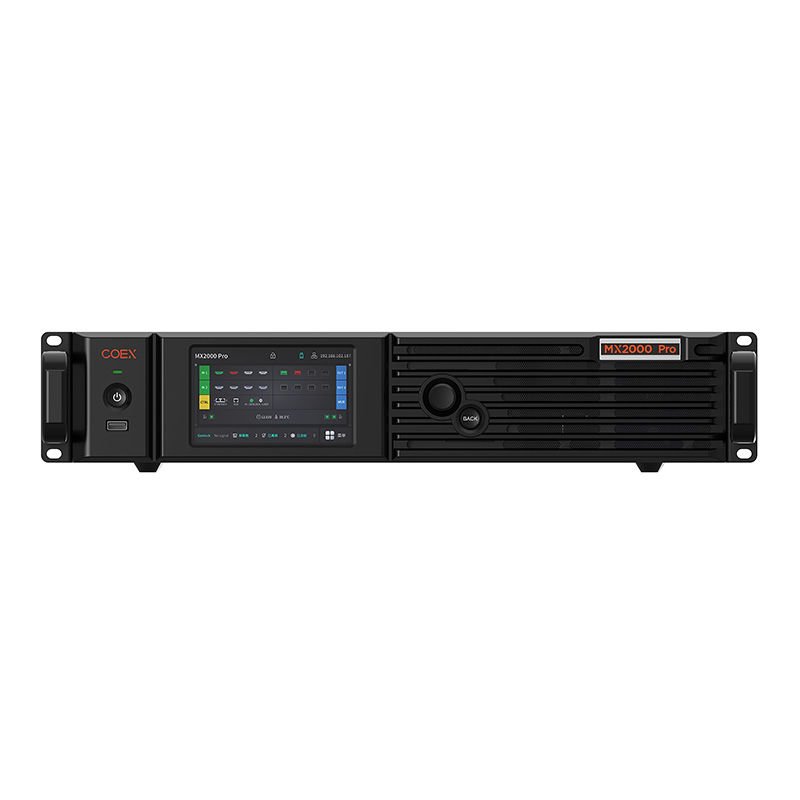

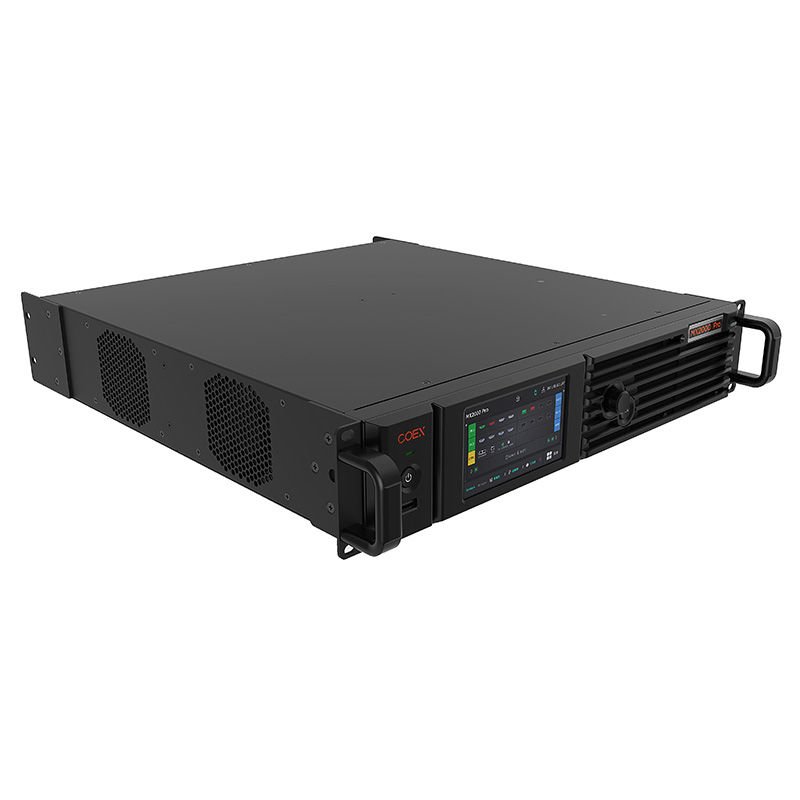

NovaStar MX2000 Pro Specifications

Overview:

The MX2000 Pro is an 8K LED display controller that belongs to NovaStar's COEX series. The range of functions includes support for 12-bit color depth, frame rates of up to 360Hz, multiscreen scaling, zero latency, and HDR. The modular design enables flexible input and output configurations.

Hardware Features:

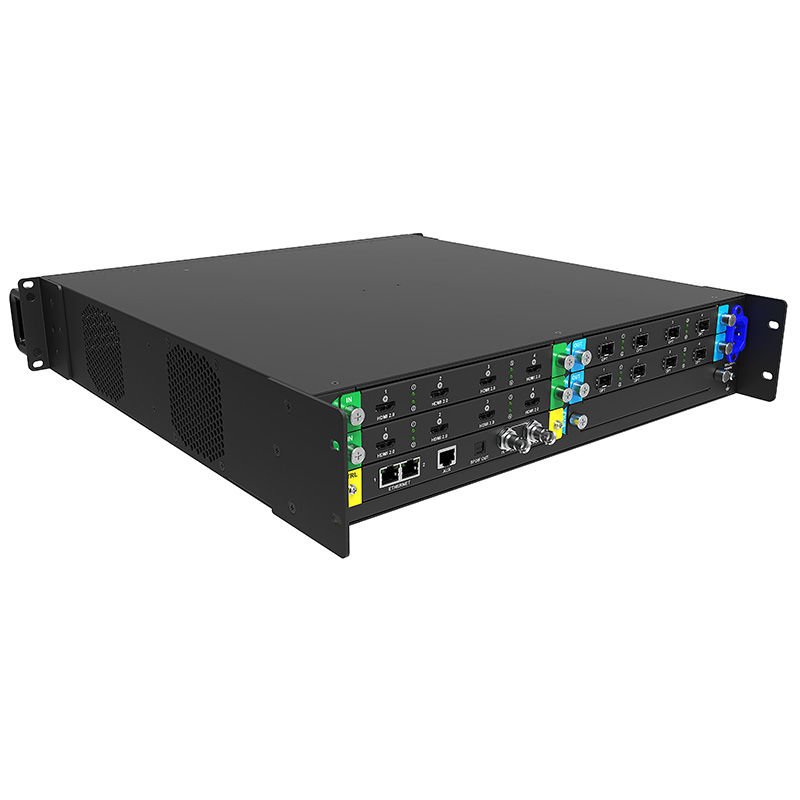

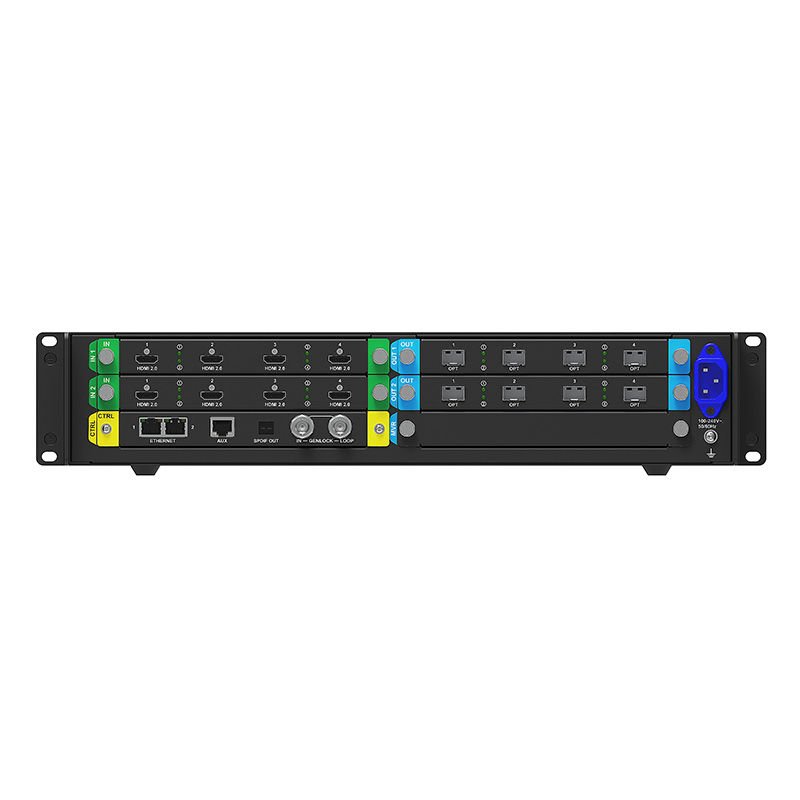

Inputs:

• 2x slots for the following input cards:
• 4x HDMI 2.0
• 2x DP 1.4

Outputs:

• 2x slots for the following output cards:
• 4x 10G Fiber Output

Further Features:

• Multi-layer
• Layer roaming
• 14Ch Color Correction
• Color Curves
• 3D LUT
• Full Grayscale Calibration
• HDR
• Frame Rate Adaptive
• Frame Multiplication
• Shutter Fit
• SNMP
• Art-Net

General Specifications:

• Supply Voltage: AC 100-240V, 50/60HZ
• Power Consumption: 260W
• Dimensions: 482.6 x 94.6 x 529.7 mm (WxDxH)
• Weight: 13.5 kg (fully equipped)
